Heat Shrinkable Ring Terminals - Crystal Clear

All new Opti-Seal, Crystal Clear Heat Shrinkable Connectors see through design allows for visual inspection during installation and for the life of the terminal. The extra-long barrel ensures a better stacking option and eliminates the overlap of heat shrink material from impeding the connector mounting hole.

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

Building product information

Please wait a moment...

Add more products to compare

Technical specifications

Color: Clear w/Red Stripe
Connection Type: Ring Terminal
Operating Temperature: -67°F (-55°C) to 257°F (125°C)
Gauge: 22–18 GA
Functions: Heat Shrinkable
Pack Quantity: 15
Material: Cross-linked Ionic Polymer
Voltage: 600 V
Stud or Tab Size: #6
Shrink Ratio: Exceeds 2.5 to 1
Package Type: Clamshell
ROHS: Yes
VMRS: 053-007-002
Voltage Rating: 600 V
Features: Adhesive-lined
Warranty: 1 Year

Features & benefits

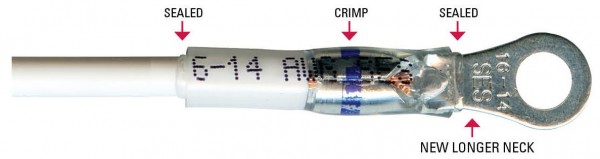

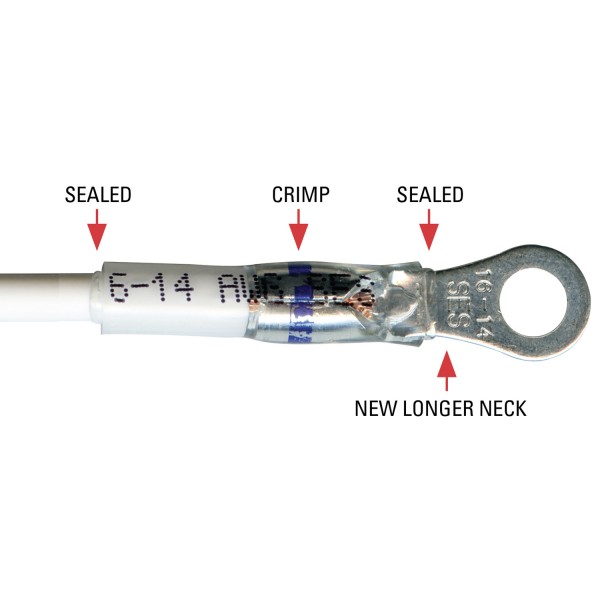

Long Ring Terminal ensures a strong, waterproof seal; provides flush surface for maximum contact; & allows ring terminal to be stacked unimpeded by tubing
45˚ barrel provides visual inspection that the wire is stripped proper length & fully seated
Color-coded stripes identify wire gauge size to be used with connector and indicate/guide where to position crimp nest to install properly
22-18 (red) & 16-14 (blue) ring terminals are 10% thicker than standard terminals (8mm vs. 7mm)
All ring terminals comprised of copper with tin plating
Brazed seam barrel ensures superior crimp performance
Serrations in crimp barrel provide strong mechanical termination
