Heat Shrinkable Butt Connectors - Crystal Clear

All new Opti-Seal, Crystal Clear Heat Shrinkable Connectors see through design allows for visual inspection during installation and for the life of the terminal. The extra-long barrel ensures a better stacking option and eliminates the overlap of heat shrink material from impeding the connector mounting hole.
Grote Loading Ajax Spinner

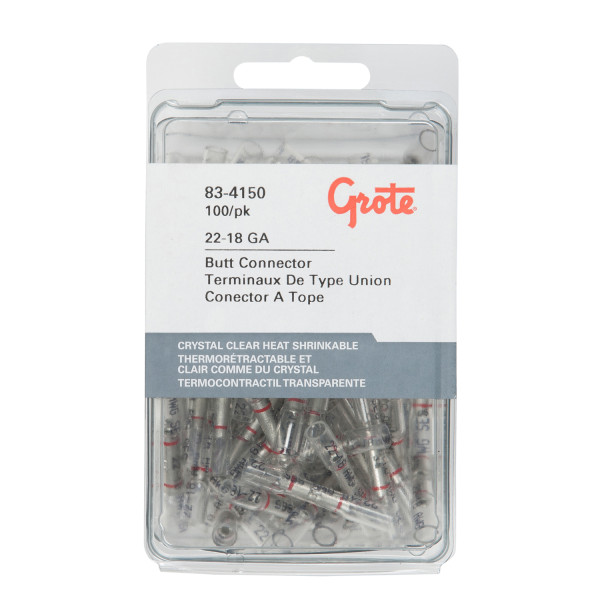

83-415022-18 Gauge

83-415022-18 Gauge

  • 83-4150 thumbnail
  • thumbnail
  • 83-4150 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Clear w/Red Stripe
  • Connection Type: Butt
  • Operating Temperature: -55°C to 125°C (-67°F to 257°F)
  • Gauge: 22-18 GA
  • Functions: Heat Shrinkable
  • Pack Quantity: 100
  • Material: Cross-linked ionic polymer
  • Voltage: 600V
  • Shrink Ratio: Exceeds 2.5 to 1
  • Package Type: Clamshell
  • ROHS: Yes
  • VMRS: 053-007-002
  • Voltage Rating: 600 V
  • Feature: Adhesive-lined
  • Warranty: 1 Year
Features & benefits
  • Window in center of connector assures that wire is stripped the proper length & fully seated
  • Color-coded stripes identify wire gauge size to be used with connector and indicate/guide where to position crimp nest to install properly
  • All butt connectors are comprised of copper with tin plating
  • Seamless barrel butt connectors ensure superior crimp performance
  • Wire-stop in butt connectors prevents over-insertion of wire
  • Step-down butt connectors have a uniform wall thickness for easy crimping & strong mechanical termination
Find a Local Distributor

Application photos

Heat Shrinkable Butt Connector
