Ultra Blue Seal 28 Ft. Trailer
Recommended Lamps
 Front Markers |
|
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| ABS |
|
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| Rear Side, Clearance Markers & REAR I.D. |
|
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| Stop/Tail/Turn |
|
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| License |
|
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |
| SuperNova® 3" Thin-Line LED Clearance/Marker Lamp | Page 47 |

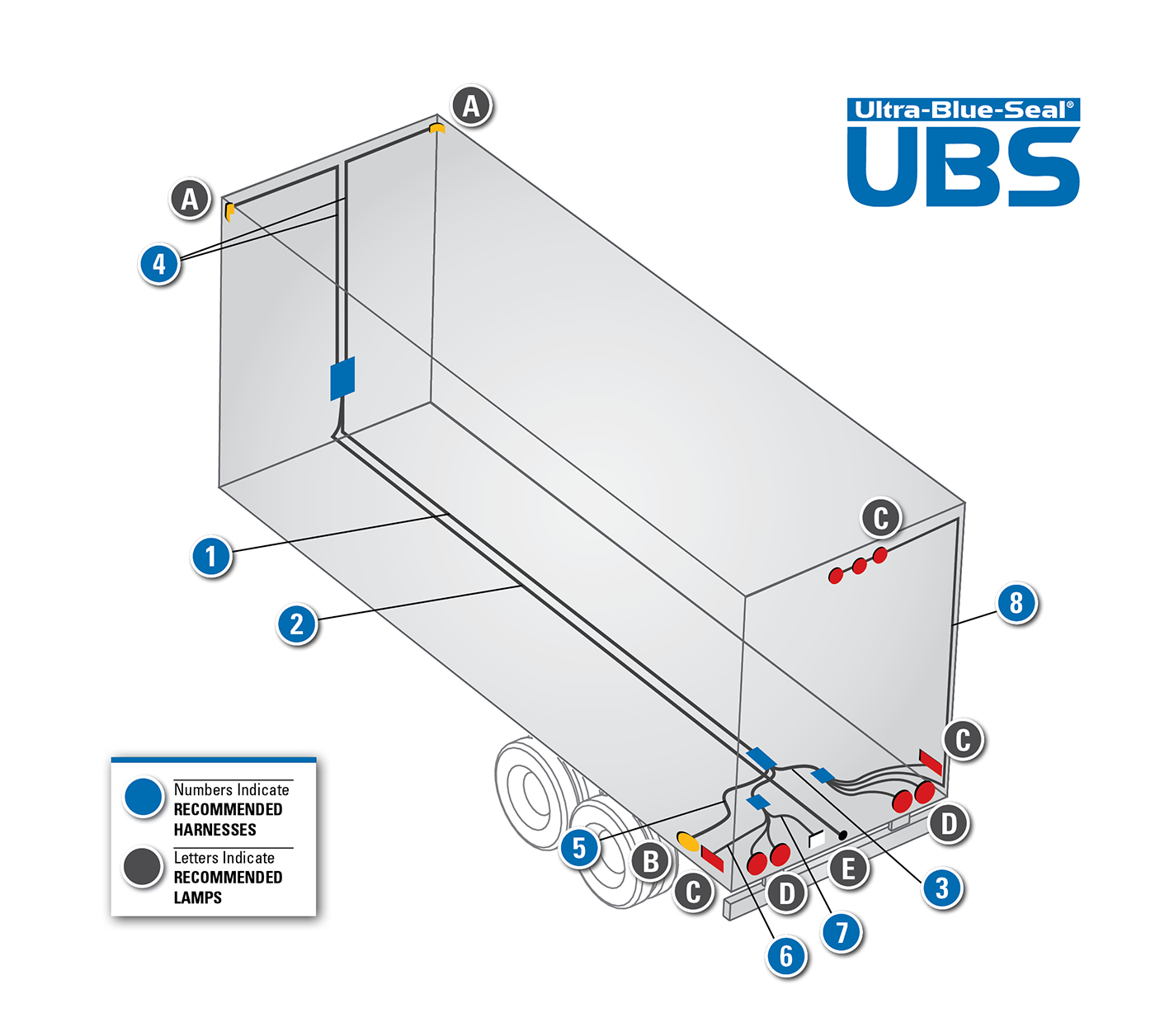

28' VAN TRAILER ULTRA-BLUE-SEAL® HARNESS SYSTEM
Main Harness
Main Harness
| Part # | Front Connection | ABS Drop | Wire Gauge | Length | VMRS Code |
|---|---|---|---|---|---|
| 01-6670-L5 | #10 Ring Terminal | 60" | 1-8, 2-10, 4-12 | 420" | 034-004-023 |
Pintle Main
| Part # | Forward Connection | Rear Connection | Wire Gauge | Length | VMRS Code |
|---|---|---|---|---|---|
| 01-6660-K3 | #10 Ring Terminal | Push-On | 1-8, 2-10, 4-12 | 420" | 034-004-023 |
| 66601 | #10 Ring Terminal | #10 Ring Terminal | 1-8, 2-10, 4-12 | 420" | 034-004-023 |
