ULTRA-BLUE-SEAL® Wire Harness System

Trailer Wiring and Communications Systems – Lamp Jumper Harnesses

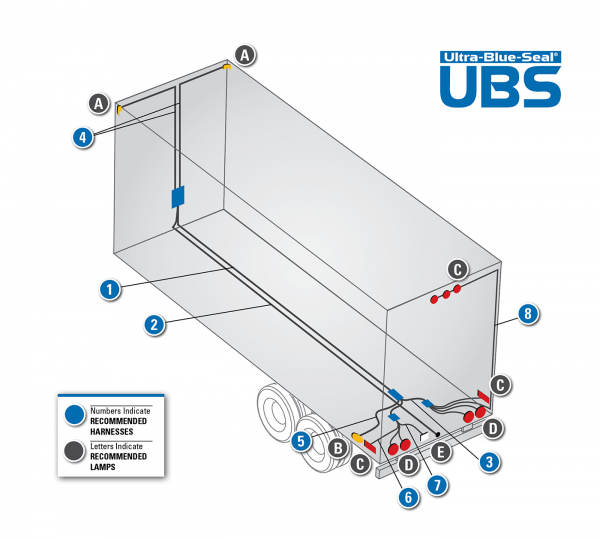

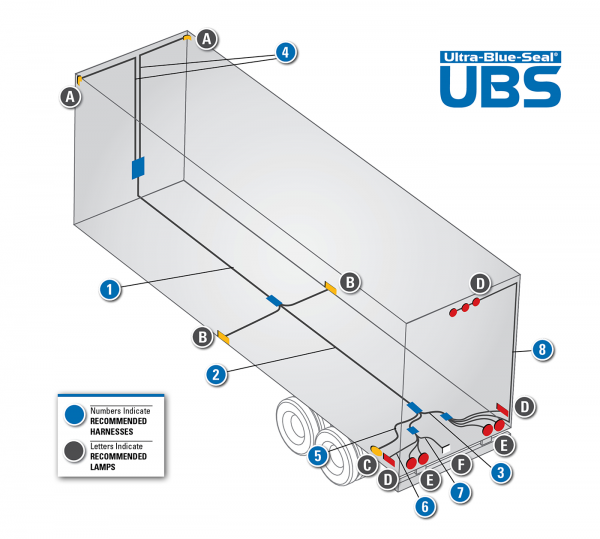

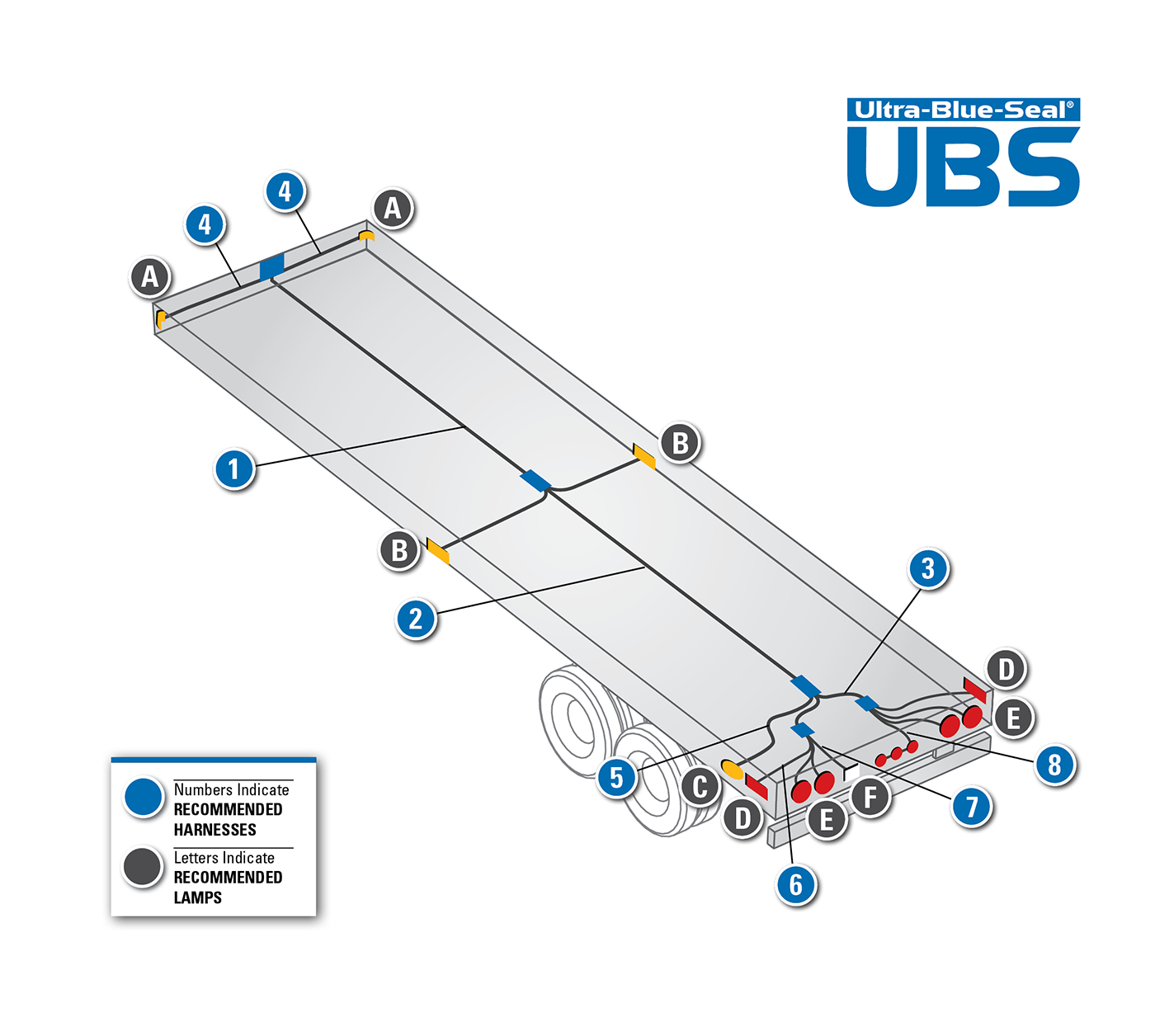

Provide connections to marker and license lamps through weatherproof UBS plugs. Plug directly into multi-ring sealed receptacles in the rear sill harness. Standard Male to Standard Female Jumper_Har_drwing

Provide connections to marker and license lamps through weatherproof UBS plugs. Plug directly into multi-ring sealed receptacles in the rear sill harness.
Standard Male to Standard Female
66100(as shown) 4′ 4″ (52″) license lamp jumper
6610128′ 3″ (339″) intermediate turn signal jumper. Use with 66200
from front receptacle.
Slim-Line Under-Lamp Male to Standard Female
661105′ (60″) jumper to access auxiliary drop-out on rear sill harness
Standard Male to Slim-Line Under-Lamp Female
661702′ (24″) rear tracking lamp jumper
Standard Male to Double Slim-Line Under-Lamp Female
66181(as shown) 2′ (24″) low mount ID lamp jumper. Use with 66160.
6618014′ (168″) upper ID lamp jumper. Use with 66160.
6618226′ (312″) intermediate side marker from rear. Use with 66162 crossover.
6612030′ (360″) side marker jumper
6611531′ (372″) side marker jumper
6611433′ (396″) side marker jumper
6611234′ (408″) lower side marker jumper
Slim-Line Under-Lamp Male to Slim-Line Under-Lamp Female
661628′ 9″ (105″) intermediate side marker crossover jumper
Slim-Line Under-Lamp Male to Double Slim-Line Under-Lamp Female
66160(as shown) 1′ (12″) multiple ID lamp jumper
661242′ 6″ (30″) front marker lamp jumper
661614′ 7″ (55″) front lower side marker from front receptacle. Use with 66190.
661257′ (84″) front marker lamp jumper
6612310′ 9″ (129″) front side marker jumper
6616312′ 8″ (152″) front upper clearance/marker from front receptacle. Use with 66190.
6612216′ (192″) front side marker jumper
6611326′ 11″ (323″) clearance lamp jumper
Blunt Cut to Double Slim-Line Under-Lamp Female
661908″ blunt cut. Wire into front receptacle terminals.
Blunt Cut to Standard Female
662008″ blunt cut. Wire into front receptacle terminals.
Double Slim-Line Female to Ring Terminal
6621012″ jumper to accommodate insulated ground return system. Should be affixed to brass ground on rear sill harness. Crimp-on 1/4″ ring terminal and heat shrink tube supplied unattached.
Two Standard Males to Two Slim-Line Under-Lamp Female
66220(as shown) 10′ 10″ (130″) ID/auxiliary stop jumper. For use with 5306 combination clearance/marker and auxiliary stop/turn signal lamp. Use with 66400 when triple ID/auxiliary stop is located on upper rail.
6612130′ (360″) mid-turn & marker lamp harness
6610431′ 2″ (374″) mid-turn & marker lamp harness
6613032′ 4″ (388″) mid-turn & marker lamp harness
6610535′ 4″ (424″) mid-turn & marker lamp harness
Two Slim-Line Males to Two Slim-Line Under-Lamp Females
66221(as shown) 5′ (60″) marker lamp or ABS fault lamp
662228′ (96″) harness
Standard Male/Standard Female to Two Slim-Line Under-Lamp Females
662232′ (24″) ground return tracking harness
66224(as shown) 3′ (36″)
One Standard Male and One Slim-Line Male to Two Slim-Line Under-Lamp Females
66821(as shown) 4′ 7″ (55″) side marker/auxiliary side turn lamp jumper. For use with lower front mounted 5306 combination lamp wired from front receptacle.
6682228′ 3″ (339″) side marker/auxiliary side turn lamp jumper. For use with lower front mounted 5306 combination lamp wired from front receptacle.
Standard Wiring Kits for Vans
Contains all lamp jumper harnesses and pigtails to plug all rear lights into rear sill harness. Kits include:(1) 66100 for use as license lamp harness
(2) 66170 for use as tracking lamp harnesses
(1) 66180 for use as identification lamp harness
(2) 66160 (as shown) for use as identification lamp extension harnesses
(5) lamp pigtails: 66800 for factory-sealed systems or 67120 for field re-sealable systems.
66500Kit for Factory-Sealed Lamp System
66510Kit for Field Re-Sealable Lamp System

7-Conductor Cable:
(SAE J1067 and J560)

7-Conductor Cable:
(SAE J1067 and J560)

  • White – Ground (10 ga.)
  • Brown – Tail and license lamp, and clearance lamps (12 ga.)
  • Black – Clearance, side marker, and identification lamps (12 ga.)
  • Yellow – Left turn signal lamp (12 ga.)
  • Green – Right turn signal lamp (12 ga.)
  • Red – Stop lamps (12 ga.)
  • Blue – Auxiliary circuit (12 ga.)
  • White – Ground (8 ga.)
  • Brown – Tail and license lamp, and clearance lamps (12 ga.)
  • Black – Clearance, side marker, and identification lamps (12 ga.)
  • Yellow – Left turn signal lamp (12 ga.)
  • Green – Right turn signal lamp (12 ga.)
  • Red – Stop lamps (10 ga.)
  • Blue – Auxiliary circuit (10 ga.)


5-Conductor Cable:
(chassis ground and
without auxiliary circuit)

4-Conductor Cable:
(boat trailer harness)*

  • Brown – Tail and license lamp, and clearance lamps
  • Black – Clearance, side marker, and
    identification lamps
  • Yellow – Left turn signal lamp
  • Green – Right turn signal lamp
  • Red – Stop lamps
  • White – Ground
  • Brown – Tail and license lamp, and side marker lamps
  • Yellow – Left turn signal lamp
    and stop lamp
  • Green – Right turn signal lamp
    and stop lamp

*Color coding applies to flat ribbon wire also.
