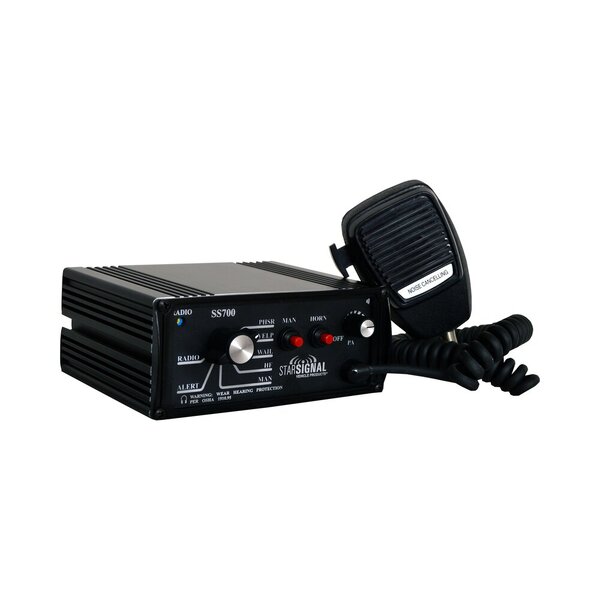

SS700 Full Feature Compact 200 Watt
The SS700-016 is a robust 200 watt siren system designed for emergency vehicles, featuring a flush mount control head and remote amplifier. It offers a comprehensive range of programmable tones and an integrated public address microphone, making it ideal for versatile communication needs in demanding environments.
SS700-28-01624 V
Compare
0 Product Added
Technical specifications
- Current Draw: 8A per speaker
- Input: 19-32
- Frequency: 675-3000Hz
- Output: 200 watts ／ 1 or 2 speakers
- Wattage: 200 W
- Voltage: 24V
- Weight: 6 lbs.
Features & benefits
- Full feature 200 watt siren with flush mount control head and remote amplifier
- Seven position rotary switch (Radio, Alert, Manual, Hands Free, Wail, Yelp, Phazer), Manual and Air Horn buttons, and Radio Repeat
- Installer programmable tones: eighteen siren tones, ten Manual and Aux tones, and eight Air Horn tones
- Integrated public address microphone with user adjustable Volume knob
- On/Off rocker switch
- Designed for use with one or two 100 watt speakers
- Auxiliary input (positive or negative switched) Air Horn or Hands Free Tone Cycling
- Diagnostic LED allows for quick troubleshooting
- Fully protected unit with high and low voltage shutdown, reverse polarity protection, built-in self-resetting audio circuit protection, and a user replaceable fuse
- Easily retrofit existing harnesses with only a wire stripper and screw driver
- Ships complete with positive locking wiring connector, mic clip, U-bracket, hardware, and instructions
Additional information
Model List
| Model |
|---|
| SS700-016 |
| SS700-28-016 |
