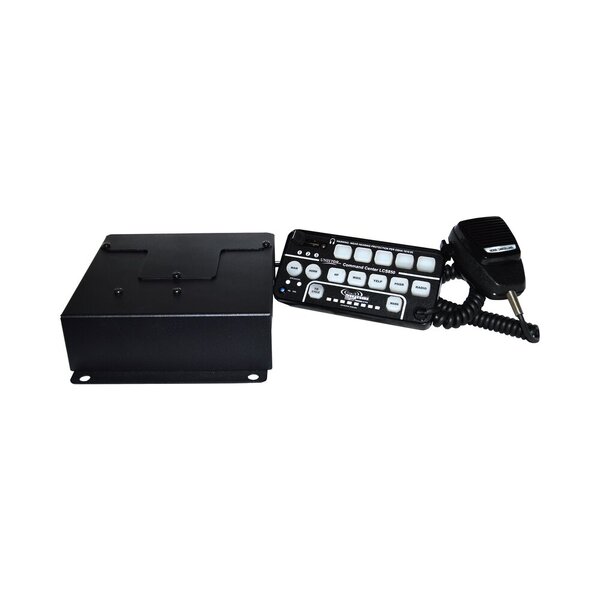

LCS800 & LCS850 Unistar™ Command Center
The LCS850MG12 is a premium 200 watt dual-tone siren and PA system designed for emergency vehicles, featuring advanced light controls and Traffic Director functions. It offers extensive programmability and dual-tone capabilities, making it an ideal choice for fleet managers seeking versatile and reliable audio solutions.
LCS850-8Siren, Uni-star Command Ctr. With AMP And Light Controller
LCS850-8Siren, Uni-star Command Ctr. With AMP And Light Controller
-
LCS800-008
Compare -
LCS850MG-F12
Compare -
LCS800-F8
Compare -
LCS850-8
Compare -
LCS850-F8
Compare -
LCS850MG12
Compare
Compare
0 Product Added
Technical specifications
- Current Draw: 8A per speaker
- Input: 10-16
- Frequency: 675-3000Hz
- Output: 100 or 200 watts 1 or 2 speakers
- Weight: 9.5 lbs.
Features & benefits
- Premium full feature 200 watt dual-tone siren and PA with slide switch, push button light controls, and Traffic Director functions
- Seven push button audio functions (Manual, Air Horn, Hands Free, Wail, Yelp, Phaser, Radio Repeat)
- Controls up to eighteen different lights/functions
- Four-position programmable progressive slide switch with LED indicators
- Five lighted push buttons for auxiliary lighting/functions
- Dual Tone (Magnum) Mode allows a single vehicle to sound like several vehicles
- Integrated public address microphone with user adjustable volume knob (combination Volume and On/Off)
- Drives one or two 100 watt speakers
- Over fifty programmable options
- Dual color lighted push buttons (Green/Red)
- Several programmable Gun Lock options
- Park Kill input (positive or negative switched)
- Auxiliary input (positive or negative switched) for Air Horn or Hands Free Tone Cycling
- Select either flange mount or flush mount version
- Diagnostic LEDs allow for quick troubleshooting
- Designed to have 0mA standby current to prevent battery drainage
- Fully protected unit with high and low voltage shutdown, reverse polarity protection, built-in self-resetting audio circuit protection, and user-replaceable fuses
- An optional Windows interface allows you to easily program one siren via USB cable and clone the options to an entire fleet of vehicles.
- Ships complete with positive locking wiring connector, mic clip, hardware, push button labels, and instructions
Additional information
Model List
| Model |
|---|
| LCS800-F |
| LCS800 |
| LCS850-F |
| LCS850 |
