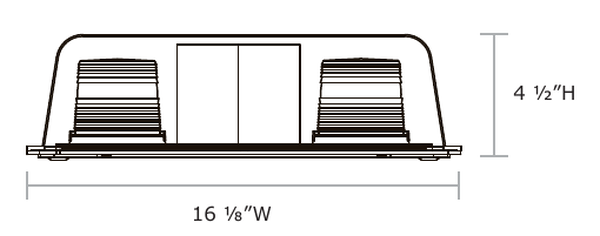

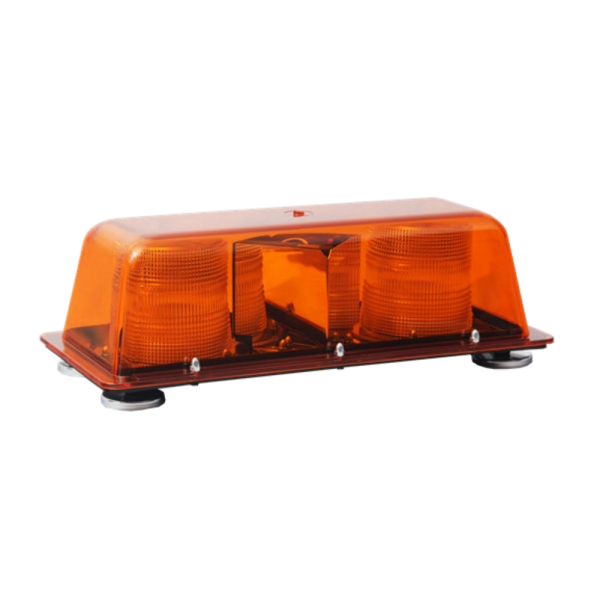

9200LX X-Fire™ LED Mini-Bars
The 9200LX minibar series offers an economical solution for high-visibility warning lights, utilizing advanced Star X-Fire® technology. Designed for emergency and utility vehicles, it features multiple mounting options and selectable flash patterns, ensuring adaptability and reliability in various operational environments.
Compare
0 Product Added
Technical specifications
- Color: Amber
- Voltage: 10-30 VDC
- Weight: 5 lbs.
- Material: Polycarbonate
- Current Draw: 0.7A @ 12V DC
- Variant: X-Fire™, SAE Class I, California Title 13, LED Mini-Bar
- Mounting: Magnet Mount
- Power Connection: Cigarette Plug
- Class: Class I
Features & benefits
- Economical ultra-bright minibar utilizing Star X-Fire® technology
- Twelve different selectable flash patterns in either of two phases, plus Steady-On
- Extremely low current draw
- Fully gasketed between the durable polycarbonate dome and base
- Two internal V-mirrors enhance flashes
- Magnet mounts include vinyl pads to avoid scratching the surface
- Permanent mount - selectable flash patterns via external pattern select wire, 24” leads
- Magnet and vacuum magnet mount versions includes 12' cord and cig. plug with On/Off and Pattern Select Switches
Additional information
Model List
| Model | Description |
|---|---|
| 9200LX | X-Fire™, SAE Class I, California Title 13, LED mini-bar, permanent mount |
| 9200LXM | X-Fire™, SAE Class I, California Title 13, LED mini-bar, magnet mount |
| 9200LXV | X-Fire™, SAE Class I, California Title 13, LED mini-bar, vacuum magnet mount |
