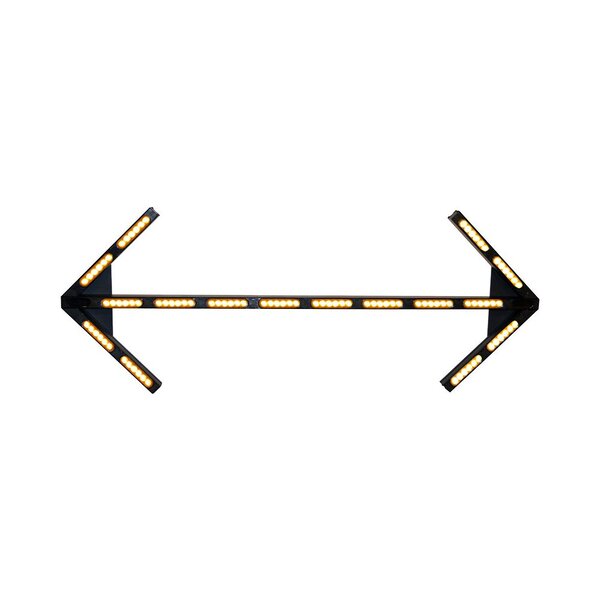

DLQSMC-ARO Multi-Color Quick Stick
The DLQS-ARO series offers high-intensity LED Traffic Directors with oversized arrowheads, designed for both interior and exterior mounting. With multiple selectable flash patterns and a Dual Warn option, these units provide versatile signaling solutions for emergency and utility vehicles.
DLQS-ARO2-AA-TD10-16V DC, Amber, with Traffic Director
DLQS-ARO2-AA-TD10-16V DC, Amber, with Traffic Director
-
DLQS-ARO-AA-TD
Compare -
DLQS-ARO2-AA-TD
Compare -
DLQS-ARO2-AA
Compare -
DLQS-ARO-AA
Compare
Compare
0 Product Added
Technical specifications
- Current Draw: 3A @ 12V DC
- Variant: 47” 16 Head DLQS Arrow Stick, with 4 head arrow and SB44-5 keypad controller
- Six Function: Right, Left, Center-Out, Full Warn, Arrow Tips Warm And Dim
- Voltage: 10-16V DC
- Weight: 15 lbs.
Features & benefits
- High-intensity Logic controlled LED Traffic Director with oversized arrowheads
- Weatherproof interior or exterior mount
- Thirty-four customer selectable warning flash patterns plus three options and thirteen head enable options
- Fifteen Traffic Director patterns
- Dual Warn option: allows the end heads to flash a warning pattern, while the center heads flash a Traffic Director pattern
- Includes a 25' 8-conductor cable
- Six function: Right, Left, Center-Out, Full Warn, Arrow tips Warm and Dim
- Bottom and rear T-slots allow for easy mounting via industry standard #10 carriage bolts
- Shipped standard with L-brackets

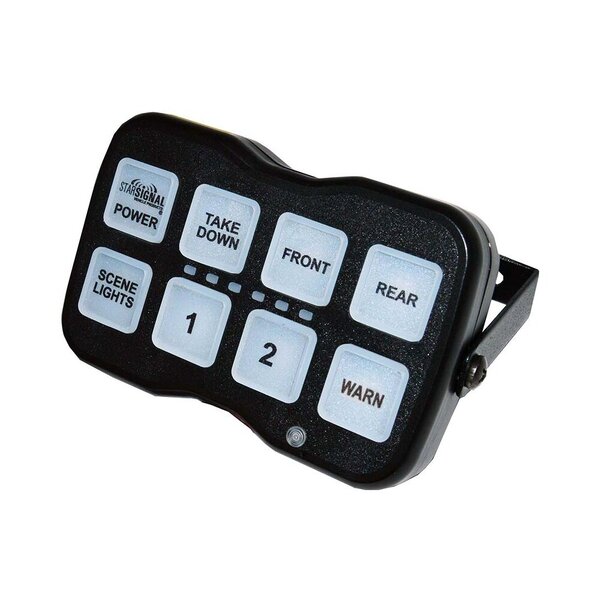

- SB44-5 keypad controller with feedback on TD models
Additional information
Model List
| Model | Description |
|---|---|
| DLQS-ARO-AA | 47” 12 Head DLQS Arrow Stick, with 2 head arrow |
| DLQS-ARO-AA-TD | 47” 12 Head DLQS Arrow Stick, with 2 head arrow and SB44-5 keypad controller |
| DLQS-ARO2-AA | 47” 16 Head DLQS Arrow Stick, with 4 head arrow |
| DLQS-ARO2-AA-TD | 47” 16 Head DLQS Arrow Stick, with 4 head arrow and SB44-5 keypad controller |
