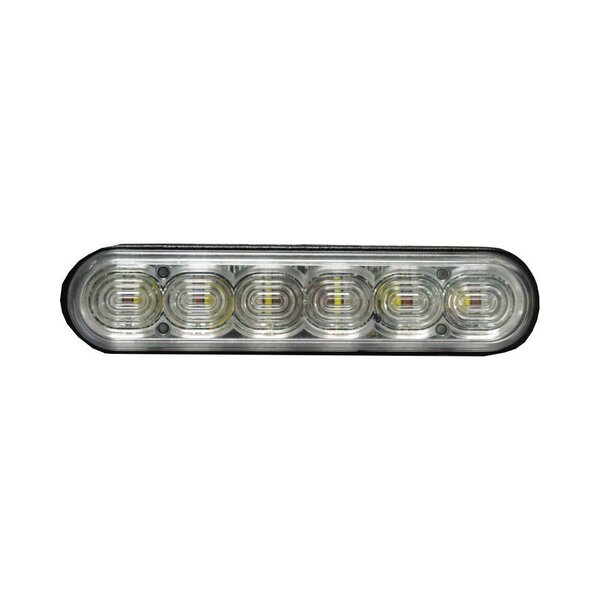

DLITDC LED Light
The Micro-Star DLITDC is a high-intensity, dual-color LED auxiliary light designed for emergency and utility vehicles. Its ultra-thin profile and advanced synchronizing capabilities make it ideal for applications requiring versatile and reliable lighting solutions.
Compare
0 Product Added
Technical specifications
- Color: Blue/White
- Voltage: 12 V
- Weight: Less than 1 lb
- Material: Polycarbonate
- Mounting: Surface Mount
Features & benefits
- High-intensity, Dual-Color LED auxiliary light
- Ultra thin profile bezel mount
- Dual-Color twelve super bright Star Generation V LEDs
- Twelve different selectable flash patterns in either of two phases
- Programmable full Steady-Burn or Cruise Mode for any color(s)
- Two independent enable lines, one for each color
- Programmable options for each enable line include Pattern, Phase, Steady Burn
- Can be controlled by an external flasher, acting as a dummy head
- Current limit protection over entire operating voltage
- New base without mounting ears allows sealed light to be independent from mounting stress forces by "floating" under mounting bezel
- Ultrasonic weld fuses lens to polycarbonate base providing maximum weather tight seal
- S-Link System 2.0™ synchronizing capabilities with other Star LED units (up to 10 units)
- IPx7 water protection
Additional information
Model List
| Model | Description |
|---|---|
| DLITDC-** | Dual-color twelve LED head |
| 274-DLIT-RL | License plate bracket for two DLIT’s |
| 274-DLIT-RT | Adhesive bracket for DLIT’s |
| 274-DLIT-LPB4 | License plate bracket for four DLIT’s |
| 274-DLIT-45 | 45 Degree bracket for DLIT’s |
| 274-DLIT-U | Universal bracket for DLIT’s |
| 274-DLIT-W | Window adhesive bracket for DLIT’s |
| 30019-314 | Shim Kit |
| S30019-320 | Reverse Bezel mount |
