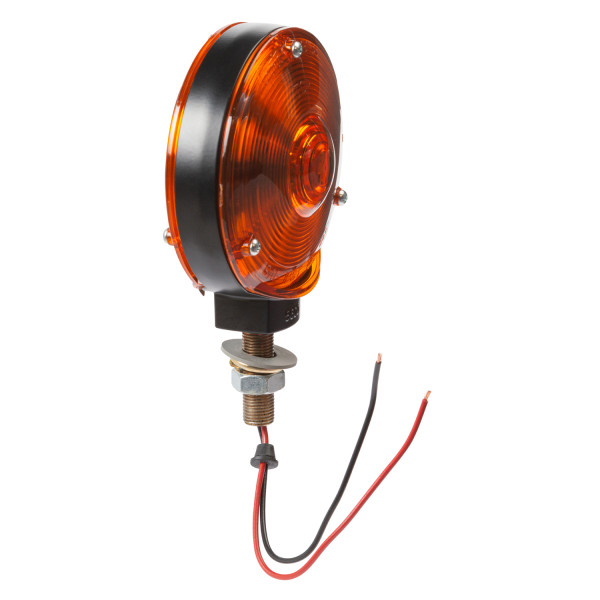

4" Zinc Die-Cast Double-Face Lights

Grote Loading Ajax Spinner

53023Double Contact

53023Double Contact

  • 53023 thumbnail

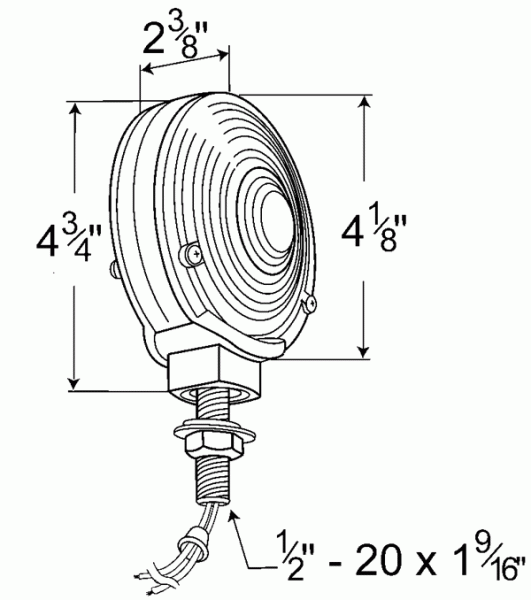

  • Grote product drawing - 4" Zinc Die-Cast Double-Face Light thumbnail
  • 53023 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Zinc Alloy Housing
  • Finish: Black Powder-Coated
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: Black
  • Voltage: 12V
  • Amperage: 0.59–2.1 A
  • Mounting Type: Pedestal
  • Connection Type: Blunt Cut
  • Size: 4"
  • Regulations: FMVSS 108
  • Functions: I, P
  • Bulb: 1157, 32, 3 CP
  • VMRS: 034-002-013
  • Diameter: 4"
  • Product Type: Lamp
  • Shape: Round
  • Warranty: 1 Year
Features & benefits
  • Single contact
  • Double contact
  • For use on vehicles less than 80" wide
  • Less than 75 sq cm of effective, projected luminous lens area
Find a Local Distributor

Replacements, Tools & Accessories

Lens 91582
91582
 Lens 91583
91583
 Pigtail 68130
68130
 Pigtail 68170
68170

Customer reviews

  • 53000

    They're great for side bumper lights on a Peterbilt

    Mike G Jan 28, 2019
