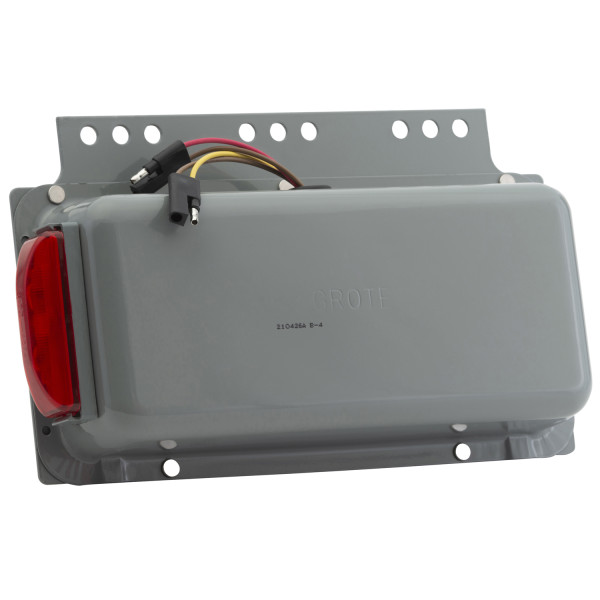

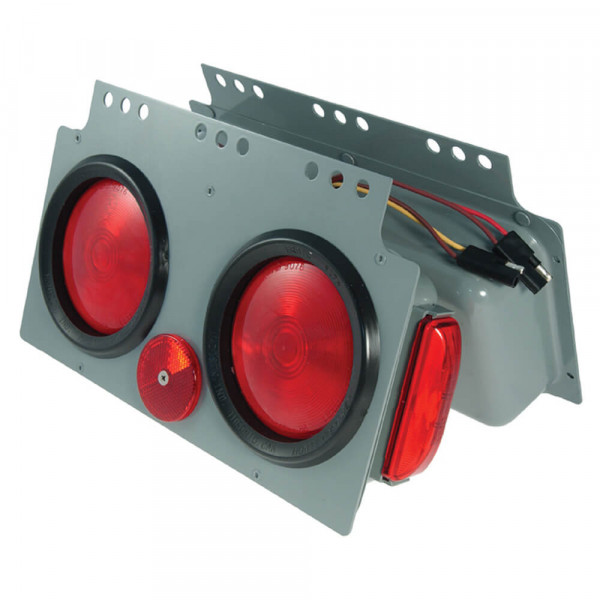

51022RH, w/ Side Marker Light

51022RH, w/ Side Marker Light

  • 51022 thumbnail

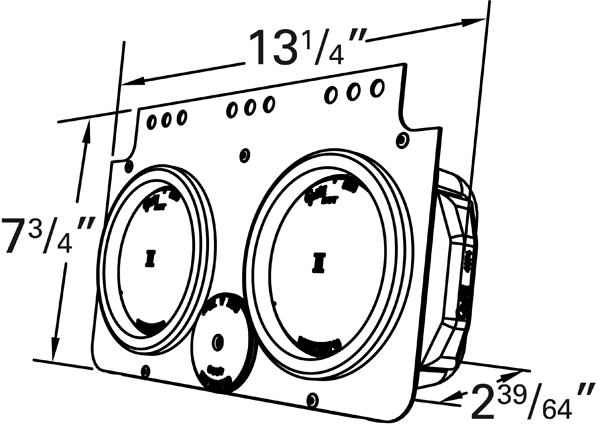

  • Grote product drawing - Stop Tail Turn Power Module with Side Marker thumbnail
  • 51022 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

51002
LED Stop Tail Turn Power Module with Side Marker

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing, Steel Pan, PVC Grommet
  • Color: Red
  • Lens Color: Red
  • Housing Color: Gray
  • Voltage: 12V
  • Amperage: .48A-2.1A
  • Mounting Type: Screw
  • Connection Type: Male/Female Bullets
  • Size: 4"
  • Regulations: FMVSS 108
  • Functions: A, I, P2, S, T
  • Bulb: 32, 2 CP, Sidemarker - (2) 2 CP
  • VMRS: 034-002-022
  • Product Type: Power Module
  • Shape: Rectangular
  • Warranty: 1 Year
Features & benefits
  • Includes reflector
  • Right- or left-hand application
  • Heavy-gauge steel plate and can
  • Torsion Mount® II 4" round sealed lamps
