SuperNova® NexGen™ Oval Dual-System LED Backup Light

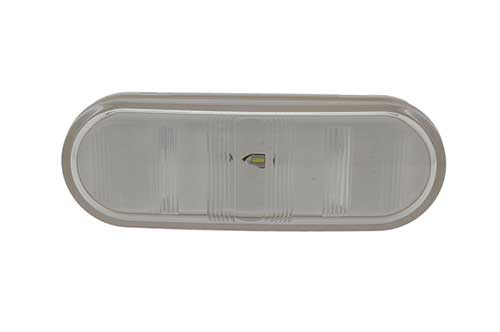

Grote's SuperNova® NexGen™ Oval Dual-System LED Backup Light fits standard oval lamp grommets and brackets with an encapsulant potting for total circuit-board protection.
Grote Loading Ajax Spinner

62051Male Pin

62051Male Pin

  • oval dual system led backup light 360 thumbnail
  • oval dual system led backup light thumbnail

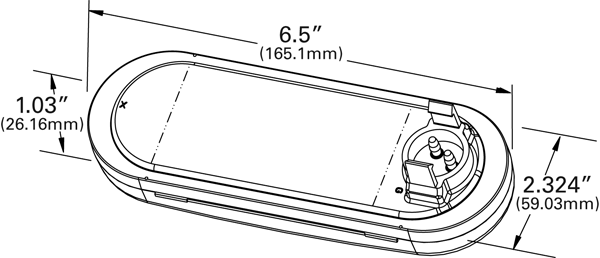

  • 62051 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Color: White
  • Lens Color: Clear
  • Housing Color: White
  • Amperage: .4A
  • Mounting Type: Bracket
  • Connection Type: Male Pin
  • Size: 6"
  • Regulations: FMVSS 108
  • Functions: R(2)
  • VMRS: 034-003-074
Features & benefits
  • Lamps must be mounted vertically
  • Requires two lamps to meet backup function
  • Fits standard oval lamp grommets and brackets
  • Hermetically-sealed lamp prevents water intrusion
  • Encapsulant potting for total circuit-board protection
