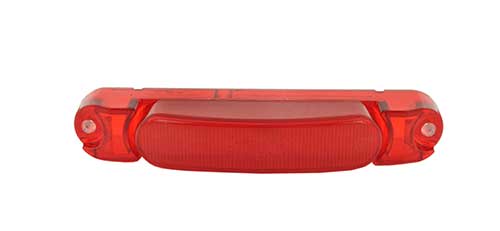

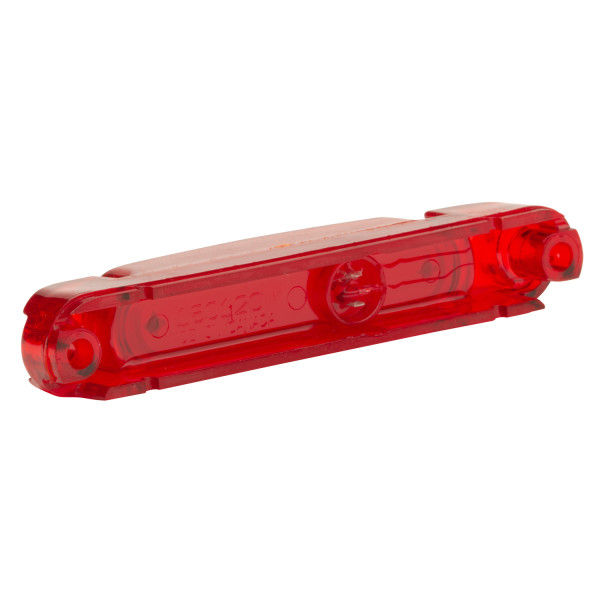

SuperNova® Thin-Line LED Clearance Marker Lights

Grote's SuperNova® Thin-Line LED Clearance Marker Lights are designed to fit a wide variety of narrow rails and channels. Each is constructed with encapsulant potting, providing total circuit board protection and increasing each light's longevity. Our Thin-Line Clearance Markers are available with red and yellow lenses, multiple body colors and utilize Grote's UBS® Double-Seal pigtails for maximum defense against corrosion.
Grote Loading Ajax Spinner

46922Red Body - Red Lens

46922Red Body - Red Lens

  • 46922 360 thumbnail
  • 46922 thumbnail

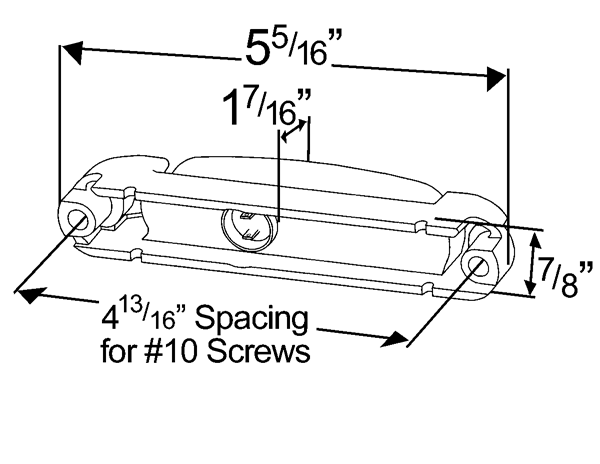

  • 46922 - drawing thumbnail
  • 46922 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: Red
  • Amperage: 0.07 A
  • Mounting Type: Bracket
  • Connection Type: Faston Tab
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-004-021
  • Product Type: Clearance Marker
  • Style: Thin-Line
  • Product Line: SuperNova®
  • Shape: Rectangular
  • Warranty: 10 Years
  • Bulk Pack #46922-3: 50
Features & benefits
  • Sealed marker lamp
  • Encapsulant potting for total circuit-board protection
  • Thin-Line design fits narrow rails and channels
  • Uses UBS double-seal pigtail for maximum protection against corrosion
