SuperNova® LED Clearance Marker Lights

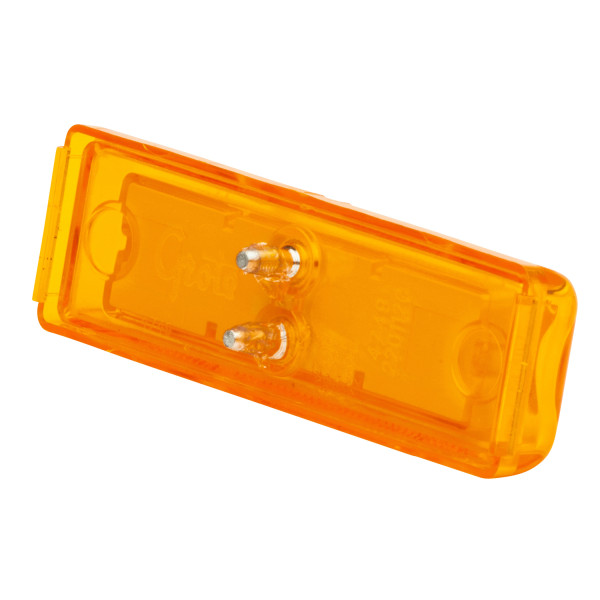

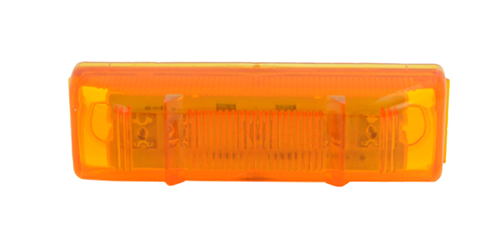

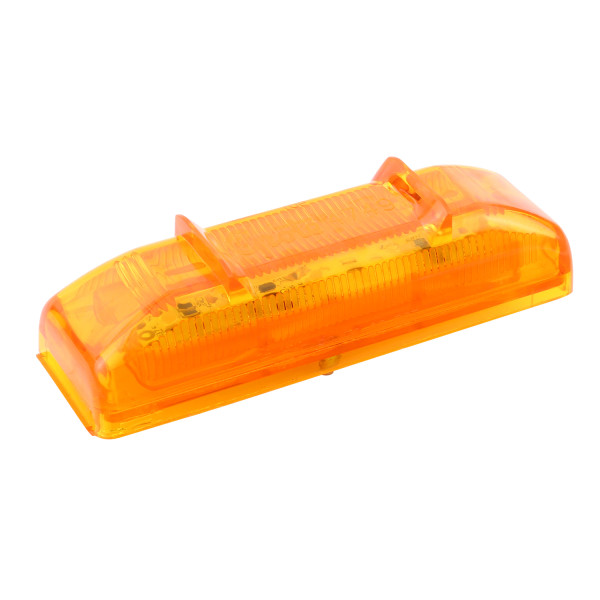

Grote's SuperNova® LED Clearance Marker Lights feature an advanced pin connection system and hermetic lens-to-housing seal for total circuit board protection. These lamps meet PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

47493

47493

  • 47493 360 thumbnail
  • 47493 thumbnail

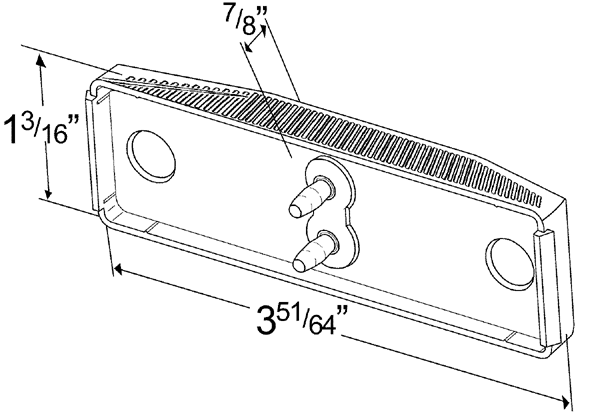

  • Grote product drawing - SuperNova® LED Clearance Marker Light thumbnail
  • 47493 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: Amber
  • Amperage: .12A
  • Mounting Type: Bracket
  • Connection Type: Male Pin
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Product Line: SuperNova®
  • Shape: Rectangular
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Advanced pin connection system
  • Uses the same UBS double-seal pigtail as incandescent for a quick retrofit
  • Meets PC function when mounted at a 45° angle
Find a Local Distributor

Replacements, Tools & Accessories

Accessory 43120
43120
 Bracket 43780
43780
 Bracket 43783
43783
 Bracket 43850
43850
 Pigtail Clearance Marker Pigtail, 8" Long, Ground Return
66982
 Pigtail 66980
66980
 Pigtail 66981
66981
