Narrow-Rail Clearance Marker Lights

Grote's Narrow-Rail Clearance Marker Lights have a steel housing for additional lamp protection and meet PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

45173Amber

45173Amber

  • 45173 360 thumbnail
  • 45173 thumbnail

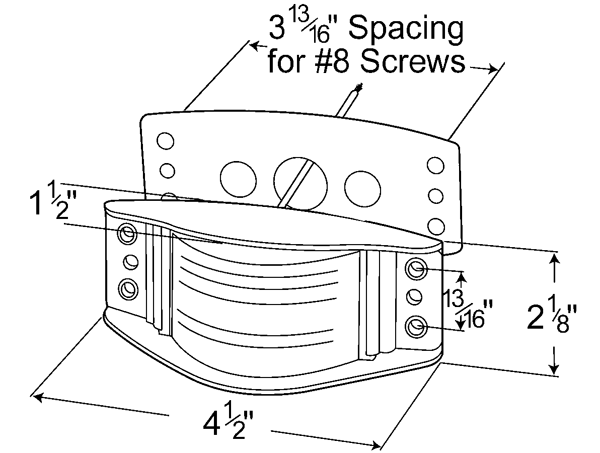

  • 45173 - drawing thumbnail
  • 45173 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Steel Housing, Acrylic Lens
  • Color: Amber
  • Lens Color: Amber
  • Amperage: 0.33 A
  • Mounting Type: Screw
  • Connection Type: Blunt Cut
  • Regulations: FMVSS 108
  • Functions: PC, P3, P2
  • Bulb: 2 CP, #193
  • VMRS: 034-004-021
  • Product Type: Clearance Marker
  • Shape: Rectangular
  • Warranty: 1 Year
Features & benefits
  • Seal-tight expanded rubber gasket
  • Steel housing for additional lamp protection
  • Two- or four-hole mounting for easy retrofits

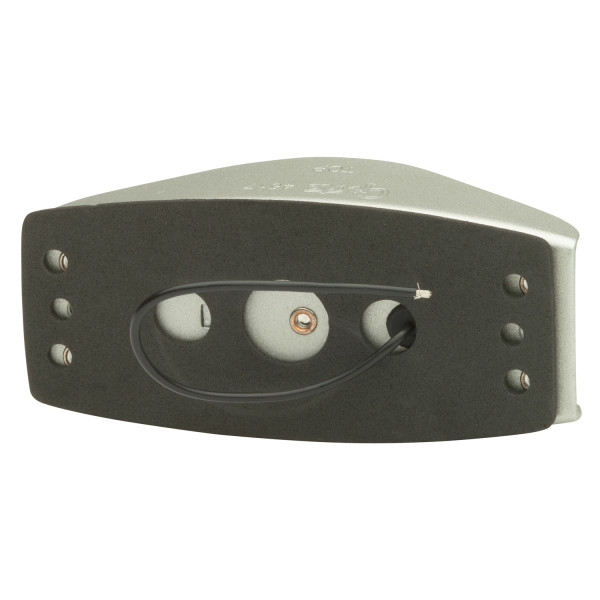

  • Flat back; no need for lamp socket hole
  • Meets PC function when mounted at a 45° angle
