    M1 Series LED Clearance Marker Lights

    Potted for total circuit board protection, Grote's M1 Series LED Clearance Marker Lights consist of a sleek, aerodynamic styling combined with hermetic lens-to-housing seal and corrosion-resistant, chrome-plated bezels.
    Grote Loading Ajax Spinner

    45582.180 Molded Bullet w/ Bezel

    45582.180 Molded Bullet w/ Bezel

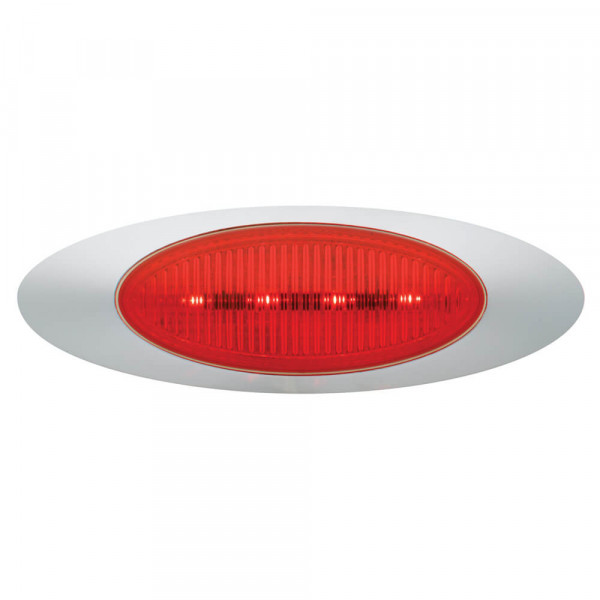

    • m1 series led clearance marker light molded bullet bezel red bulk thumbnail

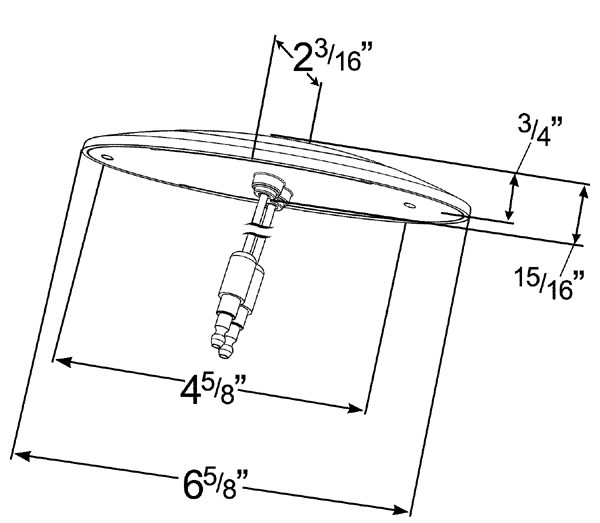

    • 45582 - drawing thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: ABS Bezel, Polycarbonate Housing, Polycarbonate Lens
    • Finish: Chrome Plated
    • Color: Red
    • Lens Color: Red
    • Amperage: .12A
    • Mounting Type: Screw
    • Connection Type: Standard .180" Male Bullet
    • Regulations: FMVSS 108
    • Functions: P2
    • Mtg Hole: .875"
    • VMRS: 034-004-253
    Features & benefits
    • Potted for total circuit board protection
    • Sleek, aerodynamic styling
    • Molded bullet kits come with two replacement mating connectors
    • Hermetic lens-to-housing seal
    • Corrosion-resistant, chrome-plated bezels

    Replacements, Tools & Accessories

    Accessory M5 Series Light Bezel, Chrome
    93453
     Harness Blunt-Cut To Standard Female, 8" Jumper Harness
    66200
