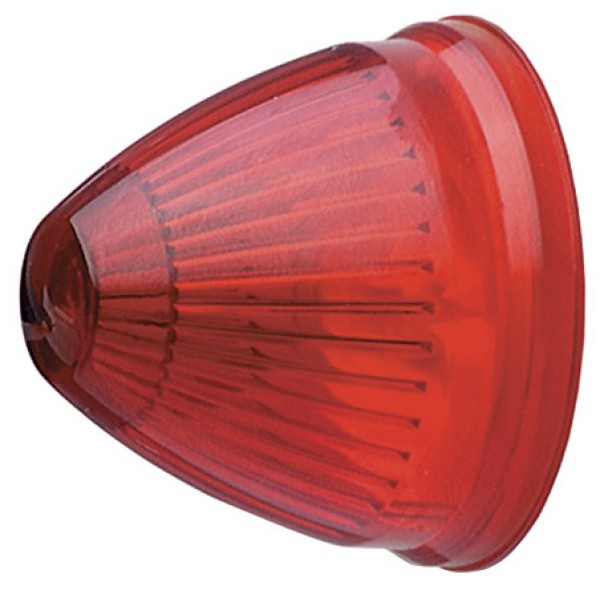

2" Beehive Clearance Marker Lights

Twist-on mounting for easy installation, Grote's 2 1/2" Beehive clearance marker lights fit all popular mountings and grommets.
Grote Loading Ajax Spinner

47102

47102

  • 2 behive clearance marker light red retail 360 thumbnail
  • 2 behive clearance marker light red retail thumbnail
  • 47102 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Color: Red
  • Lens Color: Red
  • Amperage: .33A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 2"
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • Bulb: 2 CP
  • VMRS: 034-004-021
  • Diameter: 2"
  • Bulk Pack #47102-3: 24
Features & benefits
  • Hermetic lens-to-housing seal
  • Twist-on mounting for easy installation
  • Fits all popular mountings and grommets
  • 12 volt version features a 12,000+ hour bulb
  • Meets PC function when mounted at a 45° angle
Find a Local Distributor

Replacements, Tools & Accessories

Bracket Twist-In Surface Mount Bracket, Gray
43690
 Bracket Bar Lamp Bracket For 2" & 2 1/2" Round Lights, Black
49140
 Bracket Theft-Resistant Mounting Flange For 2" Round Lights, Gray
43150
 Bracket Theft-Resistant Mounting Flange For 2" Round Lights, Black
43152
 Bracket Theft-Resistant Mounting Flange For 2" Round Lights, Chrome
43153
 Bracket Mounting Bracket For 2" & 2 1/2" Round Lights, (2 5/16" Hole)
43532
 Bracket 4 5/8" Corner Radius Bracket For 2" & 2 1/2" Round Lights, Gray
43760
 Bracket Twist-In Surface Mount Bracket For 2" & 2 1/2" Round Lights, Gray
42180
 Grommet 2 5/16" Hole Grommet, Open Grommet
92120
 Grommet 2 5/16" Hole Grommet, Closed Back Grommet
92150
 Grommet Mounting Bracket With Grommet For 2" Round Lights, Gray
93760
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ground Return
66851
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Chassis Ground
66850
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
67001
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
67050
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Slim-Line .180 Male
66800
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Standard .180 Male
66840
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ground Return
66801
