2 1/2" Oval LED Clearance Marker Lights

Grote's 2 1/2" Oval LED Clearance Marker Lights are sealed to provide better protection from moisture intrusion and feature a surface mount design for easy installation.
Grote Loading Ajax Spinner

47012

47012

  • 47012 360 thumbnail
  • 47012 thumbnail

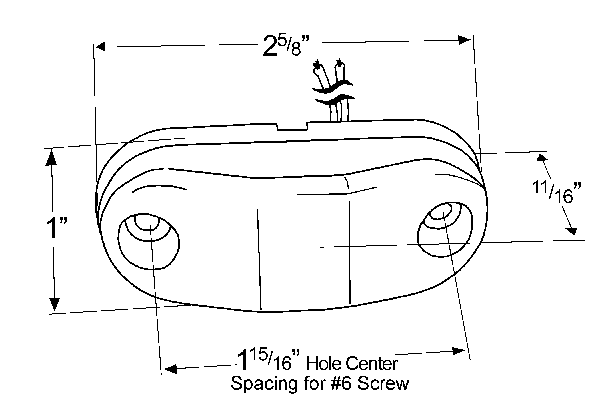

  • 47012 - drawing thumbnail
  • 47012 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens
  • Color: Red
  • Lens Color: Red
  • Amperage: .05A
  • Mounting Type: Screw
  • Connection Type: Blunt Cut
  • Size: 2½"
  • Regulations: FMVSS 108
  • Functions: P3, P2
  • VMRS: 034-004-021
  • Product Type: Clearance Marker
  • Shape: Oval
  • Warranty: 2 Years
Features & benefits
  • Surface mount design for easy installation
  • Sealed lamps provide better protection from moisture intrusion
  • Self-grounding eyelet grounds lamp when attached to metal plate (47012 & 47013)
Find a Local Distributor

Replacements, Tools & Accessories

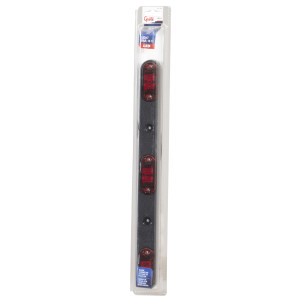

Lamp 49212-5
49212-5
