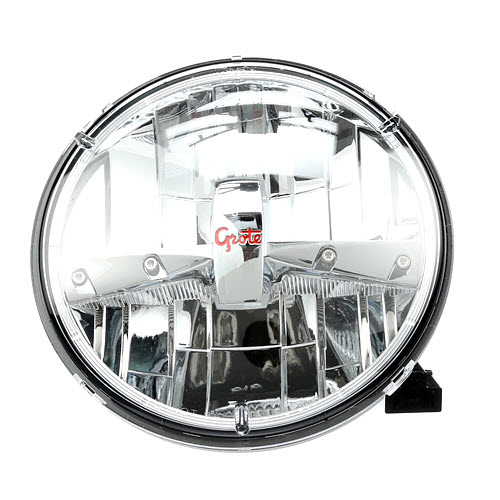

Grote Industries - 90941-5 – Grote 7″ LED Sealed Beam Replacement Headlight
Grote Industries - 90941-5 – Grote 7″ LED Sealed Beam Replacement Headlight

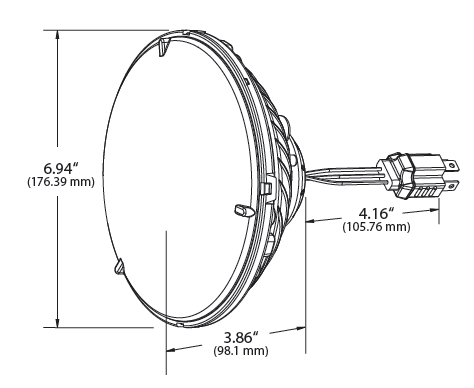

360 camera view 7 inch LED headlight 7 inch headlamp drawing


  • DOT compliant, 2D1 headlight system is legal for all 7" (Par 56) systems, including motorcycles, passenger vehicles and commercial vehicles
  • Improve the driving experience for drivers by decreasing eye fatigue and providing better detail, thus decreasing chances for accidents
  • Headlight uses a hard coated, UV protected, high impact resistant polycarbonate lens that resists cracking and yellowing
  • 9v-32v allows this lamp to be used on 12v and 24v electrical systems
  • Utilizes 3 pin, H4 connector


  • Material: Die cast aluminum housing, Hard coated UV protected polycarbonate lens
  • Finish: Black powder coated housing
  • Voltage Amp: 9v-32v
  • Thermal Stress: S14.6.6.3 Temperature cycle
  • Corrosion: S14.6.4 Connector Corrosion; S.14.6.3 Corrosion
  • Storage Temperature Test: S14.6.7 Humidity
  • Light Performance: S14.4.1 Color
  • FMVSS: 2D1 DOT compliant

Replacements / Accessories

TypePart Number
Pigtail 68630


Additional Information

Application Photos

Jeep with Grote LED Light bar and Headlights Jeep with Grote LED headlights and fog lights LED Headlight on Motorcycle Jeep with Grote LED Light bar and Headlights LED Headlight on CJ Scrambler

Related Videos

Customer Reviews

Reviews Amount: 5 / Average: 4.80

5 product reviews

5 Stars
4 Stars
3 Stars
2 Stars
1 Star

    I installed these in my 2003 Jeep Wrangler. These headlights are an excellent upgrade over the stock factory headlights. Much greater visibility at night and a much nicer white light vs the factory yellow lights. Installation was very simple and can be don’t in just a few minutes with simple hand tools. This is a high quality product at a very good price point. Highly recommended.

    LED lighting is an amazing leap forward for motorcycles. Incandescent lighting for a bike has always been very poor. Since I have switched over on my 2001 Harley Davidson FLHTPI I have seen the advantages immediately. Not only do I get a more crisp and better view at night, but I’m better seen during the day. Which is a huge bonus since most bikes are involved in accidents due to “not being seen”. Friends have descibed the light even during the day as “stunning”. At night, the LED almost seems to inhance the reflective on road signs making them much eaiser to make out when hitting the twisty roads or street signs. One of the biggest advantages that I like though, is the way the LED performs on a rainy night. Incandescent lighting always gets “sucked” into the wet road and is still hard to see. LED doesn’t get effected that way and gives great view by still illuminating the road ahead. It also works well with the fog. I always suggest to people who ask about my lighting that they should invest in doing the same.

    Got a set installed on my 2014 Willys Wrangler JK just over a year ago. These are amazing and the increased lighting, visibility especially, during wet night driving is improved 1000%. I was wondering how they would be during our Atlantic Canada winters weather conditions, I would strongly recommend these for your vehicle, no issues!

    I installed these on my 2004 Jeep Wrangler Unlimited after suffering for years with sealed beam halogens. Installation is as easy as replacing the headlight – nothing special required other than T15 Torx drivers to remove the factory bezel and retaining ring. After a few minutes of adjustments they were ready to go. The light output is bright, white, and clearly illuminates the road, unlike cheap sealed beam halogens. The beam pattern is even across the road with broad hot-spots directly in front, and light is cast evenly to either side to illuminate lane markings. Properly adjusted you can see the road in all weather conditions and you won’t blind opposing or forward traffic. The beam cut-off and hot-spots make adjustment easy. I have no reservation recommending these and will definitely purchase them again if the need arises.

    The Grote 90941-5 is an excellent driving lamp. The only problem is the fit in the holder assembly. The back side of the reflector has a larger radius protruding out which holds the lamp out approximately an 1/8” from properly seating on many vehicles listed as a direct fit. Depending on how you tighten the retainer ring the lamp will be pointed in a different position. Shims will take care of the problem. The excellent performance of this product makes the extra installation time worth it.
