Crimp Solder & Seal Quick Disconnects

Grote Loading Ajax Spinner

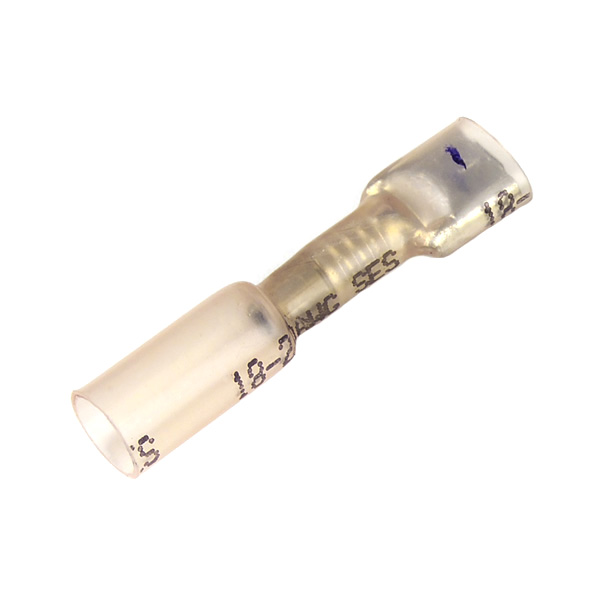

83-195120 - 18 Gauge, Female

83-195120 - 18 Gauge, Female

  • Crimp Solder & Seal Ring Terminals, 20 - 18 Gauge, .250" Stud Size FI, 25pk, Female thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polyolefin
  • Color: Red
  • Gauge: 22-18 GA
  • Connection Type: Female Disconnect
  • Operating Temperature: -55°C (-67°F) to 110°C (230°F)
  • Standards: cUL
  • Functions: Crimp, Solder & Seal
  • Pack Quantity: 25
  • Stud or Tab Size: .250" FI
  • Strength: 2200 PSI
  • Shrink Ratio: 3:1
  • Product Type: Quick Disconnect
  • Style: Disconnect, Quick Disconnect
  • ROHS: Yes
  • Voltage Rating: 300 V
  • Warranty: 1 Year
Features & benefits
  • Environmentally sealed with an adhesive-lined, heat-shrinkable jacket
  • FI = Fully Insulated / Female Connector
  • Translucent heat-shrink tubing jacket allows for visual inspection
  • Color-coded connectors, wire gauge imprint for easy identification
  • Operating temperature -55°C (-67°F) to 110°C (230°F)
