53123 - SuperNova® Oval LED Stop Tail Turn Lights

Technical specifications
  • Material: Acrylic Lens, ABS Housing, PVC Grommet
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: White
  • Voltage: 12V
  • Amperage: .08A-.5A
  • Mounting Type: Grommet
  • Connection Type: Blunt Cut, Ring Terminal

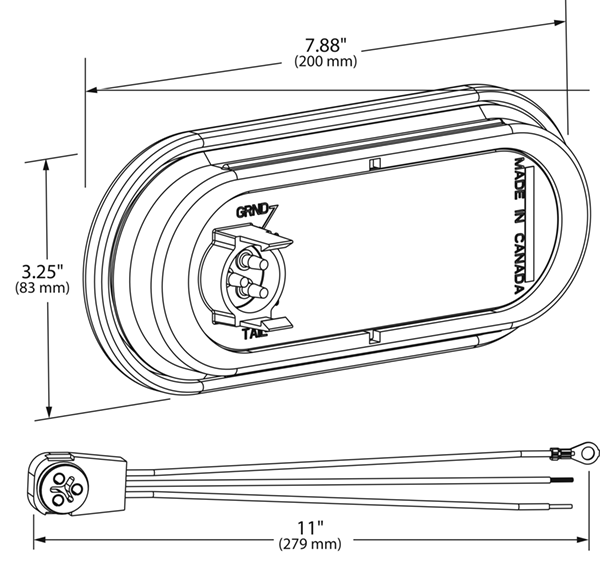

  • Size: 6"
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-002-059
  • Product Type: Stop Tail Turn
  • # of Wires: 3
  • Shape: Oval

This product is obsolete

Features & benefits
  • Advanced pin-connection system uses tin-plated, solid-brass terminals
  • Encapsulant potting for total circuit-board protection
  • Meets specifications for vertical and horizontal mounting
  • Male pin termination for maximum moisture and corrosion protection

This product is obsolete
