4" Die-Cast Single-Face Lights

Grote Loading Ajax Spinner

53052Double Contact

53052Double Contact

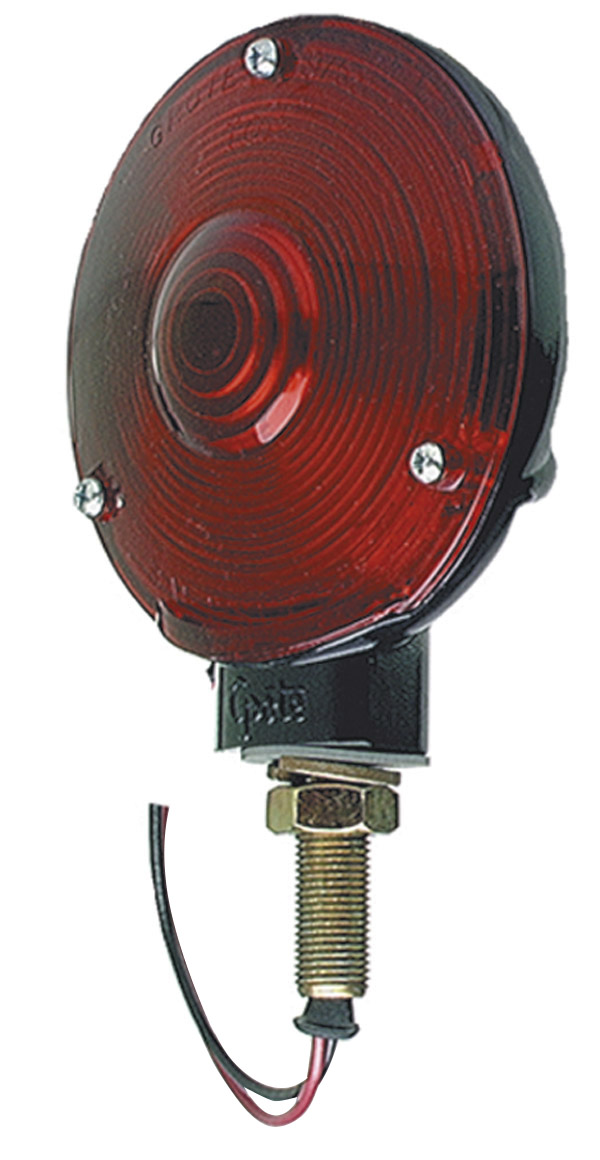

  • 53052 thumbnail

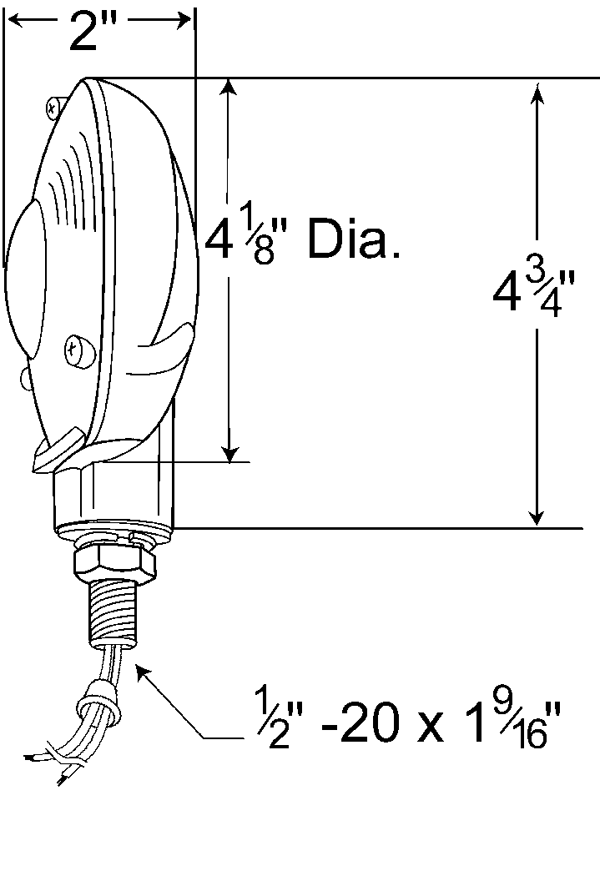

  • Grote product drawing - 4" Die-Cast Single-Face Light thumbnail
  • 53052 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Die-Cast Zinc Housing
  • Finish: Chrome Plated
  • Color: Red
  • Lens Color: Red
  • Housing Color: Black
  • Voltage: 12V
  • Amperage: .6A-2.1A
  • Mounting Type: Pendant
  • Connection Type: Blunt Cut
  • Size: 4"
  • Regulations: FMVSS 108
  • Functions: I, S, T
  • Bulb: 1157, 32, 3 CP
  • VMRS: 034-002-013
  • Diameter: 4"
  • Product Type: Lamp
  • # of Wires: 2
  • Shape: Round
  • Warranty: 1 Year
Features & benefits
  • Double contact
  • For use on vehicles under 80" wide
  • Less than 75 sq cm of effective, projected luminous lens area
  • Wire exit includes a grommet to protect the jacket from abrasion
Find a Local Distributor

Replacements, Tools & Accessories

Lens 91582
91582
 Pigtail 68130
68130
 Pigtail 68170
68170
