42282

Leave Review
★★★★★

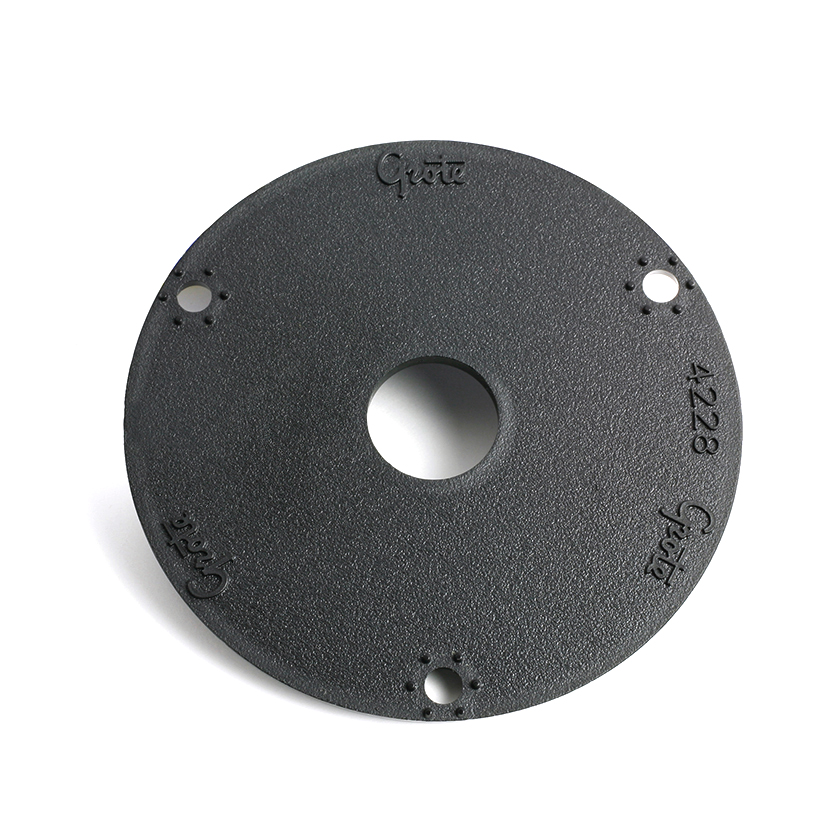

3.5" Flange Adapter

FEATURES & BENEFITS

Torque to a maximum of 25 in-lbs
Replaces 2.5” round clearance marker and flange
Mounts with three #10 pan or round head screws

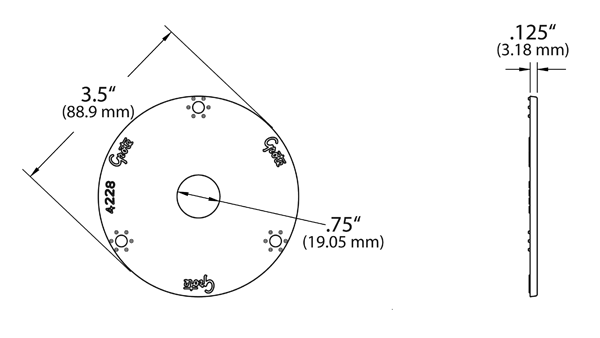

Hole pattern is identical to existing 2” and 2.5” flanges

TECHNICAL SPECIFICATIONS

Material: Polycarbonate
Color: Black

Additional Information

MicroNova® Dot adapter brackets provide an easy LED replacement for an incandescent lamp installation. These lamps can now be installed in existing bodywork anywhere a 2” or a 2 .5 “ clearance/marker lamp fits today with no change to the vehicle mounting surface. The MicroNova® Dot lamp must be equipped with a standard MicroNova® Dot grommet to fit in adapter brackets.

Contains “torque resistance” features around the mounting holes that minimize the ability to damage the adapter plate by over torquing.
