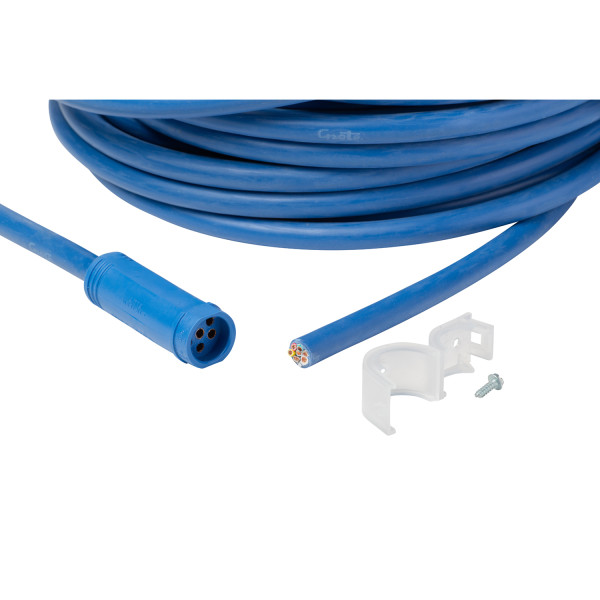

ULTRA-BLUE-SEAL® Main Harnesses

Grote's UBS harness systems are designed to prevent unplanned downtime over the life of the trailer. They're modular for flexibility and totally sealed to keep out the corrosion found in today's highway environment.
Grote Loading Ajax Spinner

6607060' Long

6607060' Long

  • 66070 thumbnail
  • 66070 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Wire Material: PVC
  • Connector Quantity: 1
  • Connector Side One: UBS 7-Way Female
  • Connector Side Two: Blunt cut
  • Wire Gauge: 1-10 GA, 6-12 GA
  • Connection Type: UBS 7-Way Female, Blunt Cut
  • Length: 60' (720")
  • Wire Length: 719.5"
  • Pack Quantity: Individual
  • Product Type: Main Harness
  • # of Wires: 7
  • Product Line: Ultra-Blue-Seal®
  • Warranty: 1 Year
Features & benefits
  • Extends from front of the nose box or receptacle
  • Provides sealed plug-in connection to real sill harness
