Two Standard Males To Two Double Females

Grote Loading Ajax Spinner

66145Marker Light Jumper, 26' Long

66145Marker Light Jumper, 26' Long

  • 66145 thumbnail

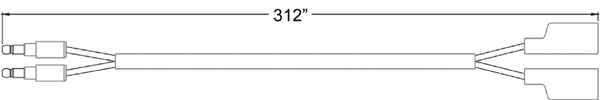

  • 66145 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side Two: Standard .180" Male Bullet
  • Connector Quantity: 4
  • Connector Side One: Double Slim-Line .180" Female Bullet
  • Wire Material: GPT
  • Color: Black
  • Wire Gauge: 2-14 GA
  • Connection Type: Double Slim-Line .180" Female Receptacle, Standard .180" Male Bullet
  • Length: 26' (312")
  • Wire Length: 311"
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-004-023
  • Product Type: Jumper
  • # of Wires: 2
  • Style: Jumper Harness
  • Warranty: 1 Year
Features & benefits
  • Used as marker lamp jumper
