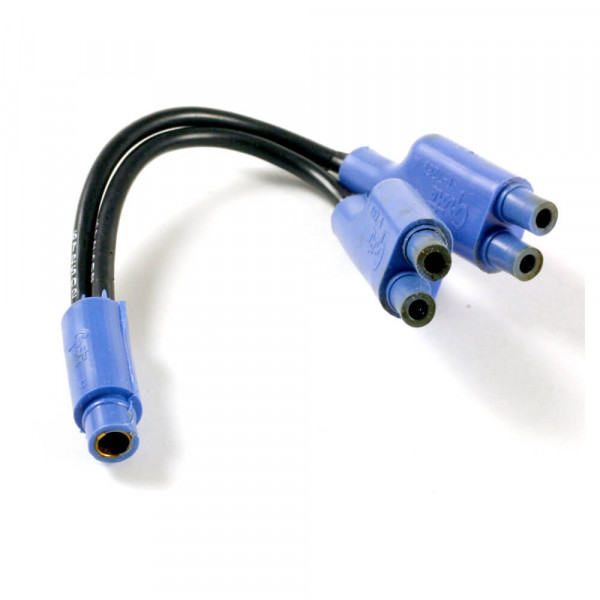

67250 - Cut-To-Fit® Wire Harness Systems

Sorry, this product is obsolete...

67250

Technical specifications

Connector Quantity: 3
Connector Side One: Push-on .180" Female Bullet
Wire Material: GPT
Connector Side Two: Double Slim-Line .180" Female Bullet
Gauge: 12 GA
Connection Type: Push-on .180" Female Bullet, Double .180" Slim-Line Female Bullet
Length: 6"
Wire Length: 5"
Pack Quantity: Individual (6 per carton)
VMRS: 034-004-023
Product Type: Harness
# of Wires: 2
Style: Y-Adapter
Product Line: Cut-To-Fit®
Warranty: 1 Year

This product is obsolete

Features & benefits

This jumper can be plugged directly into the double slim-line plugs
Adapts to the standard Grote Utlra-Blue-Seal® rear sill and main harness
Part number 67271 plugs into elbow-style rear sill, making a corrosion-proof connection
Mates with the Grote seven pin receptacle (nose box) with the use of either the 67260 adapter or the 67250

This product is obsolete
