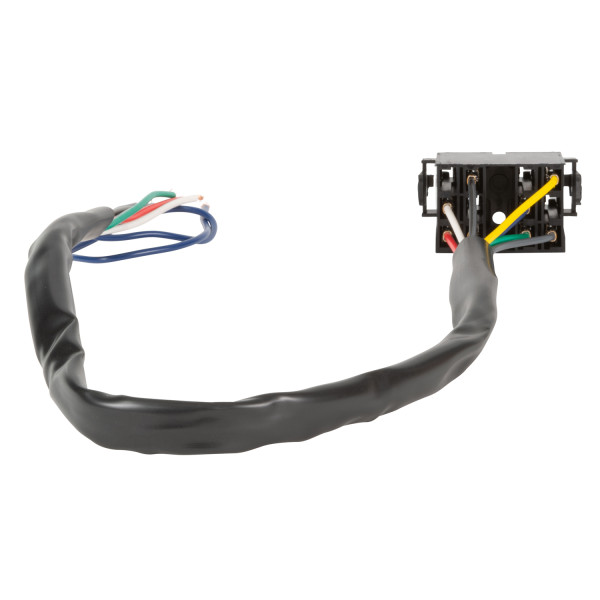

Universal Replacement Harness

    Grote Loading Ajax Spinner

    696804 to 7 Wire

    696804 to 7 Wire

    • Universal Replacement Harness, 4 to 7 Wire thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Connector Quantity: 1
    • Wire Material: GPT
    • Connector Side One: 8-Way Connector
    • Connector Side Two: Blunt cut, 5-Way Connector
    • Wire Gauge: 14 GA
    • Connection Type: 8 Way Connector, Single Pole double throw relay/Blunt Cut
    • Length: 32"
    • Wire Length: 32"
    • VMRS: 034-003-016
    • # of Wires: 8
    • Style: Universal
    Features & benefits
    • Fits 48272 switch
    • 4-to-7 wire system compatible
    • Overall length of 24" is sufficient for most applications
    • Flexible, black PVC loom adds protection without adding rigidity
    • Includes circuitry for switches with integral RH and LH turn/hazard indicator light
