61P81 - LED WhiteLight Recessed Mount 18" Dome Lights
Sorry, this product is obsolete...
61P81

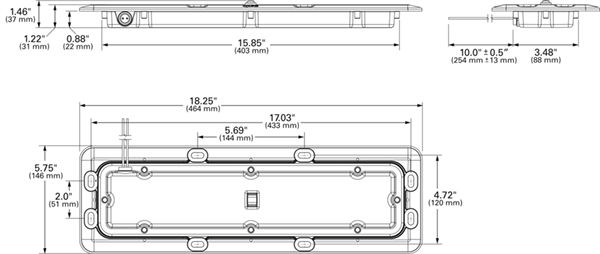

Technical specifications
- Color: White
- Length: 18.25"
- Operating Temperature: -20°C to +50°C (-4°F to +122°F)
- Voltage: 12/24V
- Mounting Type: Screw
- Connection Type: Hardwired
- Lens Color: Clear
- Lumens: 1000
- Shape: Rectangular
- Amperage: 0.89A/0.49A
- VMRS: 034-004-452
- Material: Polycarbonate Lens, Polycarbonate Housing
- Product Type: Lamp
- Housing Color: White
- Style: Dome
- Height: 1.46"
- Width: 5.75"
- Warranty: 3 Years
This product is obsolete
Features & benefits
- The plastic back panel and seal make the lamps less susceptible to moisture intrusion, removing the need for potting.
- The molded plastic back panel allows for secure mounting through the lens and has no sharp edges, meaning no snags during installation.
- Still produced at our Grote Electronics facility in Canada, these lamps now also feature improved LEDs as well as a sleeker, more modern appearance.
This product is obsolete
