Power Sockets & Plugs

Grote’s power sockets and plugs deliver OEM-grade performance for aftermarket, upfitter, and original-equipment applications. Designed for durability and easy installation, the family supports a wide range of devices—from traditional auxiliary power to modern USB charging—across commercial, automotive, marine, and work-vehicle environments.

Grote Loading Ajax Spinner

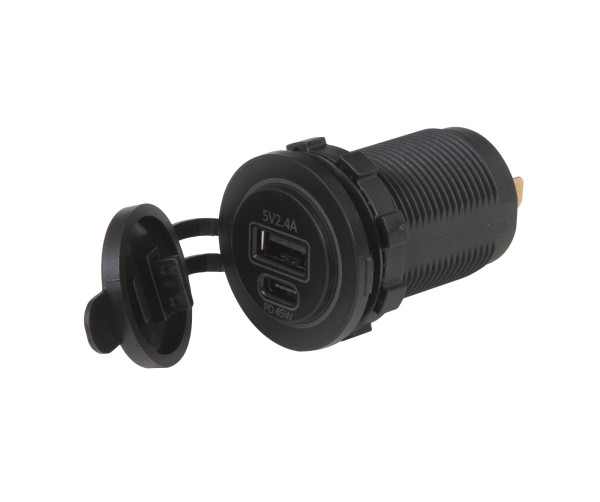

83-6573Dual USB Socket, Type A + C, Power Delivery, Round, 12/24 V

83-6573Dual USB Socket, Type A + C, Power Delivery, Round, 12/24 V

  • 83-6573 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Black
  • Class: PD
  • Amperage: 2.4 A
  • Ingress Protection: IP65 (Closed)
  • Connection Type: .250" Quick Connect
  • Operating Temperature: -20°C (-4°F) TO 60°C (140°F)
  • Feature: LED Back-Lit
  • Pack Quantity: 1
  • Mtg Hole: 29 mm (1.14")
  • Material: Nylon
  • Voltage: 12/24 V
  • Package Type: Retail Bag
  • Shape: Round
  • Product Type: PD USB Socket
  • VMRS: 099-003-004
  • ROHS: Yes
  • Pins: 2
  • Termination: Quick Connect
  • Watts: 12 VDC Input: 12 W+36 W, 24 VDC Input: 18 W+45 W
  • Warranty: 1 Year
Features & benefits
  • Designed for durability and easy installation, the family supports a wide range of devices—from traditional auxiliary power to modern USB charging.
  • Power Delivery (PD) fast charging supports laptops, diagnostic tools, and other high-draw devices.
  • Dual-port configurations (USB-C or USB-A + C) charge two devices simultaneously.
  • Compatible with 12V and 24V electrical systems for universal fleet installation.
  • Wide operating-temperature ranges for harsh-environment performance.
  • Compact design simplifies integration into modern dashboards and panels.
