DTM Series Terminals

Grote's Deutsch DTM series environmentally sealed connectors are designed specifically for cable to cable applications. With an operating temperature of -55°C (-67°F) to 125°C (257°F), these connectors are ideal for use under the hood, transmission, lighting connections, and other engine compartments.
Grote Loading Ajax Spinner

84-248320 - 16 Gauge

84-248320 - 16 Gauge

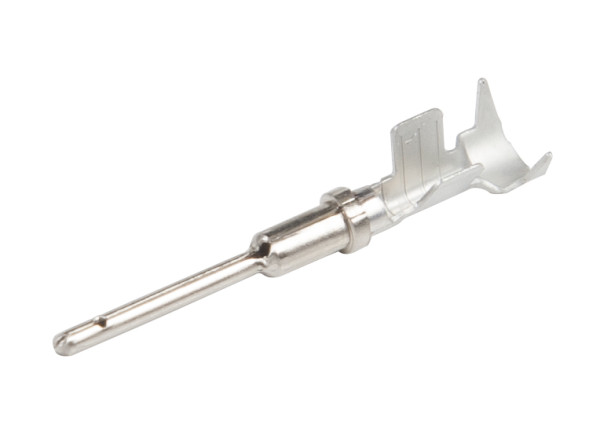

  • Deutsch - DTM Series Terminals, 20 - 16 Gauge, Male Open Barrel thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Amperage: 7.5 A @ 125 °C (257 °F)
  • Gauge: 20–16 GA
  • Series: DTM Series
  • Operating Temperature: -67°F (-55°C) to 257°F (125°C)
  • Pack Quantity: 10
  • Product Type: Terminal
  • Crimp Style: Open Barrel
  • OEM #: 1060-20-0122
  • Type: Male
  • Warranty: 1 Year
Features & benefits
  • Ideal for use under the hood, transmission, lighting connections and other engine compartments
  • Nickel-plated contacts
  • Operating temperature -55°C (-67°F) to 125°C (257°F)
  • Current rating 7.5 amps @ 125°C (257°F) continuous
  • Designed for lower amperage connectors
