DTM Series Housing and Wedgelocks

Designed for lower amperage connectors, Grote's DTM Series Housing & Wedgelock products consist of a thermoplastic, flame-retardant housing and silicon seals which allow the connectors to withstand extreme temperatures and moisture.
Grote Loading Ajax Spinner

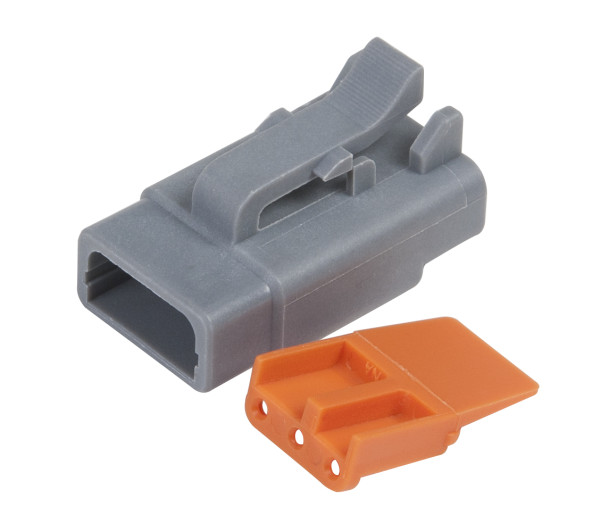

84-24863-Way Female Plug

84-24863-Way Female Plug

  • 84-2486 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Series: DTM Series
  • Operating Temperature: -67°F (-55°C) to 257°F (125°C)
  • Pack Quantity: 2 Pair
  • Product Type: Plug, Wedgelock
  • OEM #: DTM06-3S, WM-3S
  • Pins: 3
  • Warranty: 1 Year
Features & benefits
  • Silicone seals; Nickel-plated contacts
  • Designed for lower amperage connectors
  • Current rating: 7.5 amps @ 125°C (257°F) continuous
  • Ideal for use under the hood, transmission, lighting connections and other engine compartments
