DT Series Terminals

Ideal for use under the hood, transmission, lighting connections and other engine compartments, Grote's DT Series Terminals consist of silicon seals, nickel-plated contacts, and operating temperature of -55°C (-67°F) to 125°C (257°F).
Grote Loading Ajax Spinner

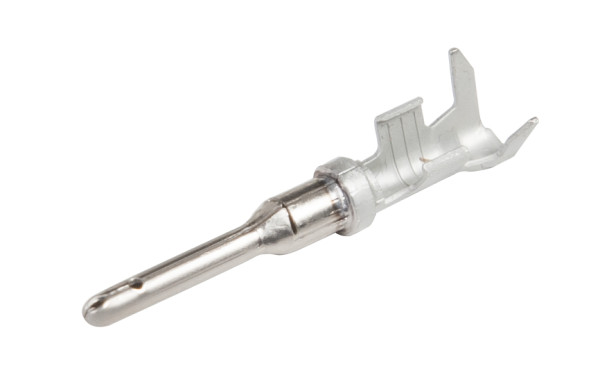

84-246616 - 14 Gauge

84-246616 - 14 Gauge

  • Deutsch - DT Series 16 - 14 Gauge Male Terminals, 10 Pack. thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Amperage: 13 A @ 125 °C (257 °F) continuous
  • Gauge: 16–14 GA
  • Series: DT Series
  • Operating Temperature: -67°F (-55°C) to 257°F (125°C)
  • Pack Quantity: 10
  • Product Type: Terminal
  • Crimp Style: Open Barrel
  • OEM #: 1060-14-0122
  • Type: Male
  • Warranty: 1 Year
Features & benefits
  • Ideal for use under the hood, transmission, lighting connections, and other engine compartments
  • Lighting connections and other engine compartments
  • Operating temperature -55°C (-67°F) to 125°C (257°F)
  • Silicon seals; Nickel plated contacts
  • Current rating 13 amps @ 125°C (257°F) continuous
  • Installation Crimp Tools; 83-6562, 83-6563, 83-6516, 83-6517
  • Removal Tools; 83-6567, 83-6565, 83-6566
