Battery Cables - Type SGR

Made from 100% copper cable, our type SGR battery cable meets all SAE code J1127 specifications and is rated at 60 volt.
Grote spinner logo

82-5726Length 100', 60V

82-5726Length 100', 60V

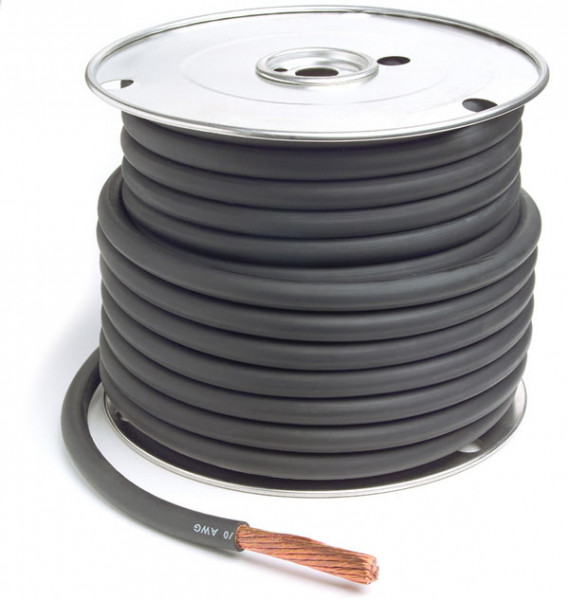

  • 100' Battery 6 Gauge Cable thumbnail
Technical specifications
  • Material: 100% Copper
  • Color: Black
  • Gauge: 6 GA
  • Operating Temperature: -40°C (-40°F) to 105°C (221°F)
  • Length: 100'
  • Outside Diameter: .310"
  • Standards: SAE J1127
  • Pack Quantity: 1
  • Strand: 133
  • Insulation/Protection: EPDM
  • Product Type: Battery Cable
  • Type: SGR
  • Package Type: Spool
  • Voltage: 60V
  • Warranty: 1 Year

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: 100% Copper
  • Color: Black
  • Gauge: 6 GA
  • Operating Temperature: -40°C (-40°F) to 105°C (221°F)
  • Length: 100'
  • Outside Diameter: .310"
  • Standards: SAE J1127
  • Pack Quantity: 1
  • Strand: 133
  • Insulation/Protection: EPDM
  • Product Type: Battery Cable
  • Type: SGR
  • Package Type: Spool
  • Voltage: 60V
  • Warranty: 1 Year
Features & benefits
  • Rated @ 60V
  • 100% Copper Cable
  • All Battery Cable is spooled
  • Meets all SAE code J1127 specifications
