61R00Clear, Angle, 11.33 in | 288 mm

61R00Clear, Angle, 11.33 in | 288 mm

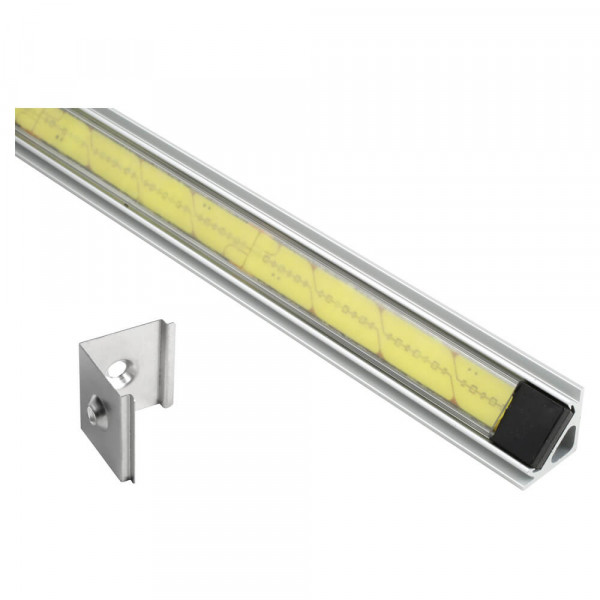

  • LED Light Strip in Extrusion thumbnail

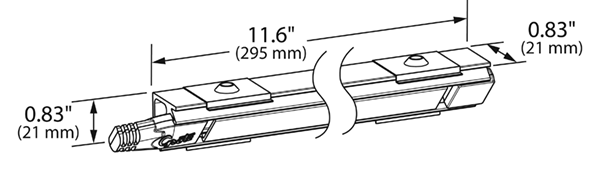

  • Grote product drawing - LED Light Strip in Mounting Extrusion thumbnail


0 Product Added


Quickly compare up to 5 Grote products...

pdf spinner

Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Aluminium Housing
  • Color: White
  • Lens Color: Clear
  • Housing Color: Aluminum
  • Voltage: 12V
  • Amperage: .19A
  • Lumens: 630 (Effective)
  • Mounting Type: Clips
  • Connection Type: Standard .180 Bullet, .180 Female Receptacle
  • Ingress Protection: IP69K, IP67
  • Operating Temperature: 40 to 149F (-40 to 65C)
  • Length: 11.33"
  • Extrusion Type: Angle
  • VMRS: 034-004-281
  • Product Type: Light Strip
  • Warranty: 3 Years
Features & benefits
  • Provides ability to install extrusion at a 90 degree angle to be able to aim light at a 45 degree angle
  • Made in the USA LED Light Strip
  • Allows mounting where tape is not practical
  • Extrusions protect XTL Strip Lighting from impacts
  • Supplied with mounting clips
