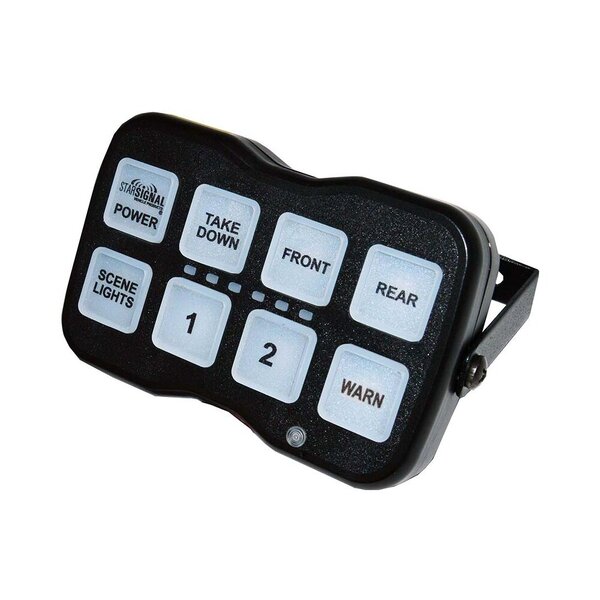

SB44 Switch Box
The SB44-5 is a versatile programmable switchbox designed for emergency and utility vehicles. It features a five-button standard Traffic Director control with auxiliary switches, offering durable construction and customizable settings for optimal performance in demanding environments.
Compare
0 Product Added
Technical specifications
- Material: Polycarbonate
- Output: 6 outputs @ 2.5A average, 2 outputs @ 0.06A average
- Operating Range: 9-16
- Voltage: 12V
- Weight: 2 lbs.
Features & benefits
- Five-button standard Traffic Director control options and auxiliary switches
- Built-in LED display mimics Traffic Director output
- Red backlit silicone rubber keypad with 14 programmable brightness settings
- Option to program as a 4-output switchbox
- Durable polycarbonate housing
- Hardwired 11" pigtail
- Includes aluminum U-bracket (274-SB44-U) and stainless steel hardware for versatile mounting
- Includes replaceable velvet finish Lexan™ button labels
Additional information
Model List
| Model | Description |
|---|---|
| SB44-8 | Programmable switchbox, 8 buttons, U-bracket included |
| SB44-5 | Programmable switchbox, 5 buttons, U-Bracket included |
| 274-SB44-H | Headliner Bracket |
| 274-SB44-U | U-Bracket |
| 274-SB44-ULP | Low profile U-Bracket |
| 274-SB44-VC | Visor Clip Bracket |
