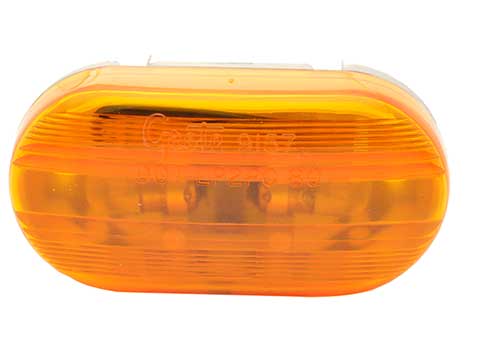

Two-Bulb Oval Pigtail-Type Clearance Marker Lights

Grote's Two-Bulb Oval Pigtail-Type Clearance Marker Lights has exclusive internal armor for additional bulb protection and meets PC function only when mounted at a 45° angle.
Grote Loading Ajax Spinner

45263Optic Lens

45263Optic Lens

  • 45263 360 thumbnail
  • 45263 thumbnail

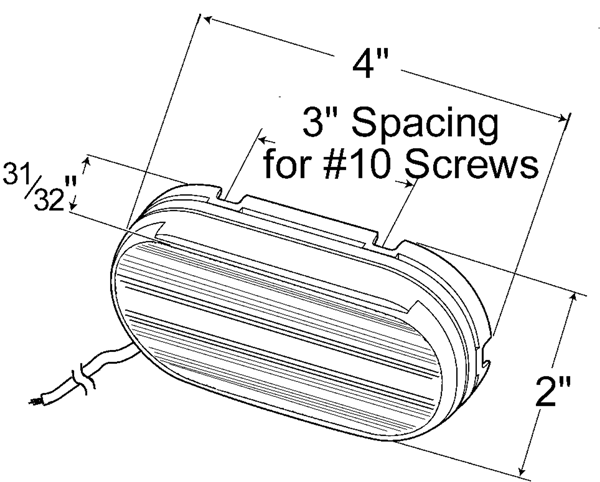

  • 45263 - drawing thumbnail
  • 45263 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polypropolene housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: White
  • Amperage: .66A
  • Mounting Type: Bracket
  • Connection Type: Blunt Cut
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • Bulb: #1893, 2 CP (2)
  • VMRS: 034-004-021
  • Product Type: Clearance Marker
  • Shape: Oval
  • Warranty: 1 Year
  • Bulk Pack #45263-3: 0
Features & benefits
  • Corrosion-resistant contacts
  • Two stainless-steel grounds
  • Standard snap-on lens for easy bulb replacement
  • Meets PC function only when mounted at a 45° angle
  • Exclusive internal armor for additional bulb protection
  • Reflex version is a side marker, clearance lamp, and reflector combined
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43144
43144
 Bracket 43673
43673
 Lens 91573
91573
 Pigtail 67120
67120
