SuperNova® Low-Profile LED Clearance Marker Lights

Grote's SuperNova® Low-Profile LED Clearance Marker Lights have encapsulant potting for total circuit-board protection and are a popular marker lamp on Peterbilt.
Grote Loading Ajax Spinner

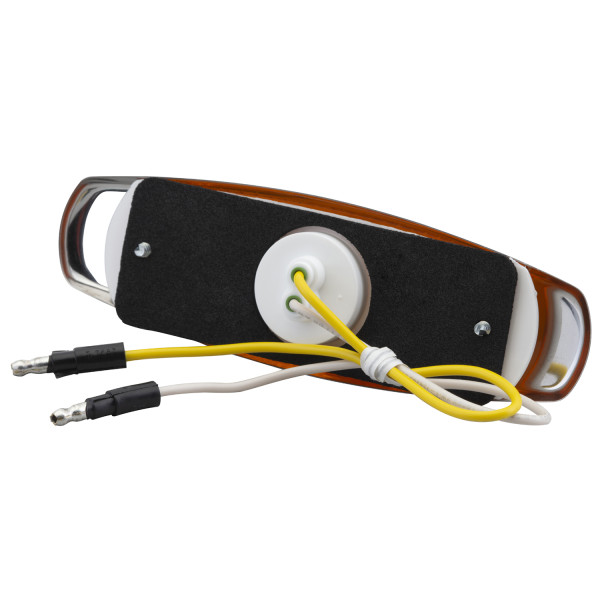

47253w/ Bezel

47253w/ Bezel

  • 47253 thumbnail

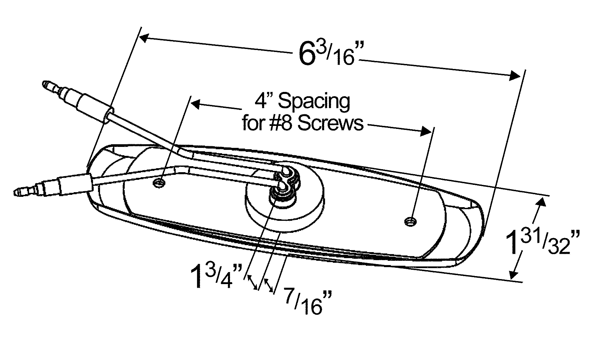

  • 47253 - drawing thumbnail
  • 47253 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Polypropolene housing, Stainless Steel Bezel
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: White
  • Amperage: .06A
  • Mounting Type: Screw
  • Connection Type: Standard .180" Male Bullet
  • Size: 2"
  • Regulations: FMVSS 108
  • Functions: A, P2
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Product Line: SuperNova®
  • Shape: Rectangular
  • Warranty: 2 Years
Features & benefits
  • Popular marker lamp on Peterbilt
  • Requires 1¼" hole for mounting
  • Encapsulant potting for total circuit-board protection
  • Field replaceable lens, built-in reflector
  • Sealed hard-wire terminations with .180" molded, UBS slim-line bullets
Find a Local Distributor

Replacements, Tools & Accessories

Lens 90073
90073
