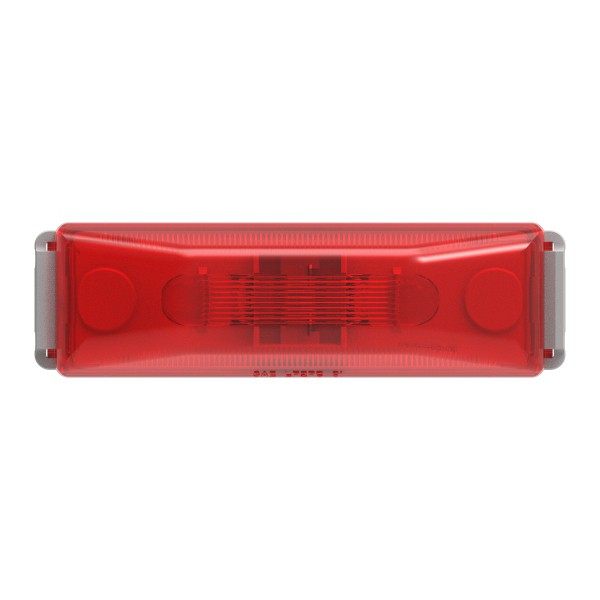

Rectangular Clearance Marker Lights
Grote's Rectangular Clearance Marker Lights are rectangular with double bulbs for narrow mounting applications. Meets PC function when mounted at a 45° angle.
Compare
0 Product Added
Technical specifications
- Material: Polycarbonate Lens, Polycarbonate Housing, Polycarbonate Bracket
- Color: Red
- Lens Color: Red
- Amperage: .66A
- Mounting Type: Bracket
- Connection Type: Male Pin
- Regulations: FMVSS 108
- Functions: P2, P3, PC
- Bulb: (2) 2 CP
- VMRS: 034-004-021
- Product Type: Clearance Marker
- Shape: Rectangular
- Warranty: 1 Year
Features & benefits
- Hermetic lens-to-housing seal
- Narrow mounting applications
- Meets PC function only when mounted at a 45° angle
- Uses double-seal UBS pigtail
- Rectangular, double bulb lamp
