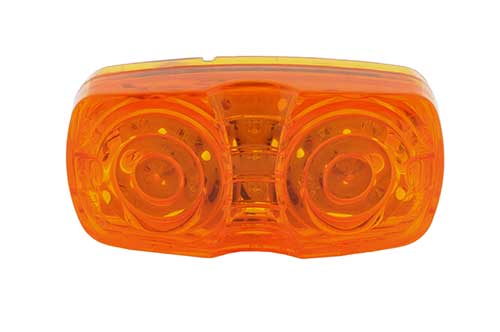

Hi Count® Square-Corner 13-Diode LED Clearance Marker Lights

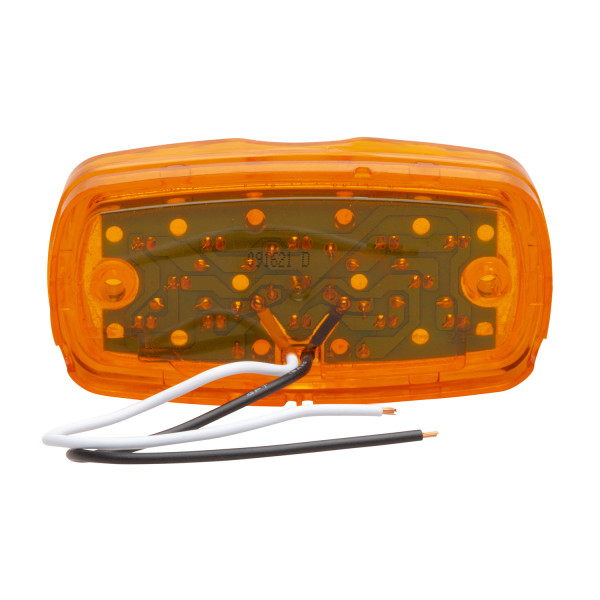

Grote's Hi Count® Square-Corner 13-Diode LED Clearance Marker Lights are potted for total circuit board protection and have a field-replaceable lens.
Grote Loading Ajax Spinner

G4603

G4603

  • G4603 360 thumbnail
  • G4603 thumbnail

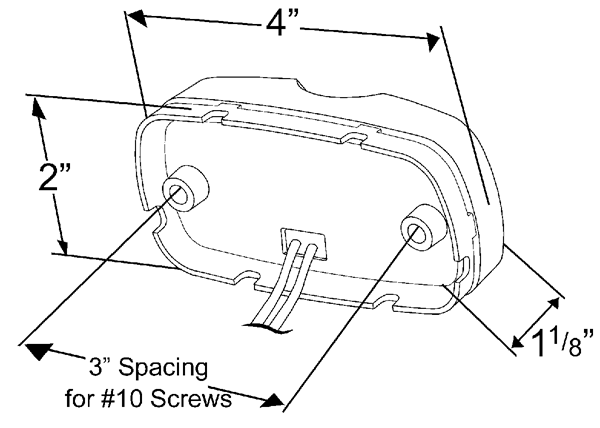

  • g4603 - drawing thumbnail
  • G4603 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: Amber
  • Amperage: .15A
  • Mounting Type: Bracket
  • Connection Type: Blunt Cut
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Product Line: Hi Count®
  • Shape: Rectangular
  • Warranty: 2 Years
  • Bulk Pack #G4603-3: 50
Features & benefits
  • Molded snap-ring
  • Potted for total circuit board protection
  • Field-replaceable lens
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43144
43144
 Bracket 43673
43673

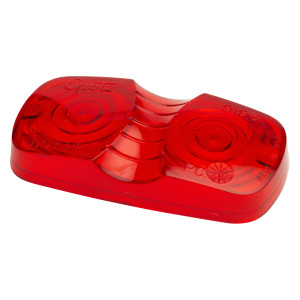

 Lens 91962
91962

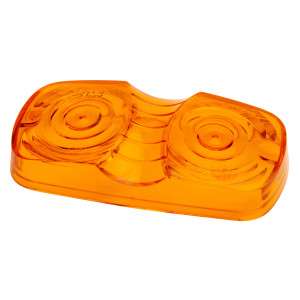

 Lens 91963
91963
