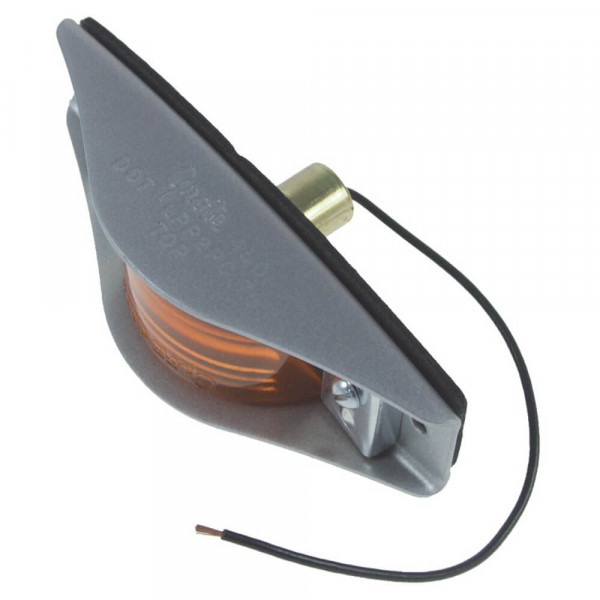

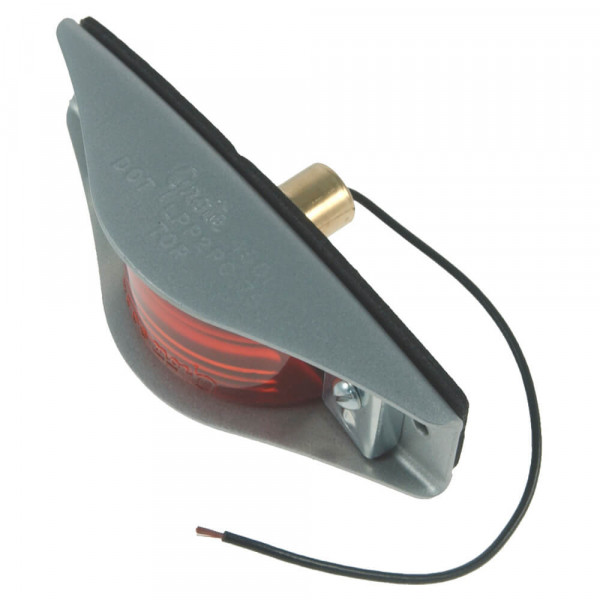

Armored Clearance Marker Lights

Grote's Armored Clearance Marker Lights have two- or four-hole mounting for easy retrofits and meets PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner



  • armored clearance marker light 360 thumbnail
  • armored clearance marker light thumbnail
  • 45012 - drawing thumbnail


0 Product Added


Quickly compare up to 5 Grote products...

pdf spinner

Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Steel Housing
  • Finish: Silver Painted
  • Color: Red
  • Lens Color: Red
  • Amperage: .06A
  • Mounting Type: Screw
  • Connection Type: Blunt Cut
  • Length: 5.38"
  • Regulations: FMVSS 108
  • Functions: P2, PC, P3
  • Bulb: #67, 4 CP
  • VMRS: 034-004-021
Features & benefits
  • Seal-tight, expanded rubber gasket
  • Steel housing for additional lamp protection
  • Two- or four-hole mounting for easy retrofits
  • Rear socket hole required
  • Meets PC function when mounted at a 45° angle
