Vinyl Quick Disconnects

Grote Loading Ajax Spinner

88-238716 - 14 Gauge, Female

88-238716 - 14 Gauge, Female

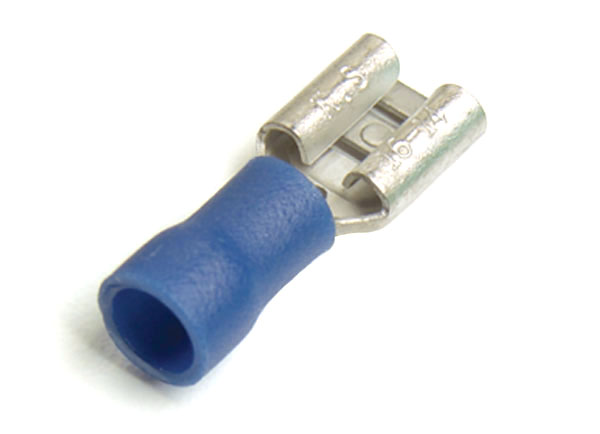

  • Vinyl Quick Disconnects, 16 - 14 Gauge, .250" Size, Female, 1000pk thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Vinyl
  • Color: Blue
  • Gauge: 16-14 GA
  • Connection Type: Female Disconnect
  • Pack Quantity: 1000
  • Stud or Tab Size: .250"
  • Product Type: Quick Disconnect
  • Style: Quick Disconnect
  • ROHS: Yes
  • UL Listed: Y
  • Voltage Rating: 300 V
  • Warranty: 1 Year
Features & benefits
  • Wire pullout after crimping & recovery; yellow: 60lb; blue: 50lb; red: 25lb
  • Vinyl insulation sleeve withstands the pressure of crimping
  • Continuous operating temperature 75°C (167°F)
