Heat Shrinkable Bullet & Receptacle Connectors

Grote Loading Ajax Spinner

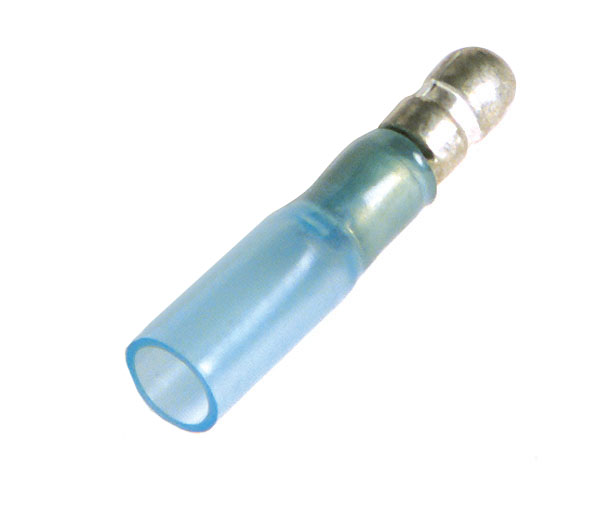

83-243416 - 14 Gauge, Male

83-243416 - 14 Gauge, Male

  • Heat Shrinkable Bullet & Receptacle Connectors, 16 - 14 Gauge, .197" Bullet Size, 50pk, Male thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polyolefin
  • Color: Blue
  • Gauge: 16-14 GA
  • Connection Type: Male
  • Operating Temperature: -55°C (-67°F) to 110°C (230°F)
  • Standards: cUL
  • Functions: Heat Shrinkable
  • Pack Quantity: 50
  • Stud or Tab Size: .197"
  • Shrink Ratio: 3:1
  • Product Type: Connector
  • ROHS: Yes
  • Voltage Rating: 300 V
  • Feature: Adhesive-lined
  • Warranty: 1 Year
Features & benefits
  • Protects splices from water, corrosion, salt and moisture, provides strain relief
  • Protects against added vibration in rugged environments
  • Seamless butt connectors and brazed-seam rings & spades prevent opening of connector barrel
  • Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job
  • Completely insulates and protects electrical connections
  • UL listed
