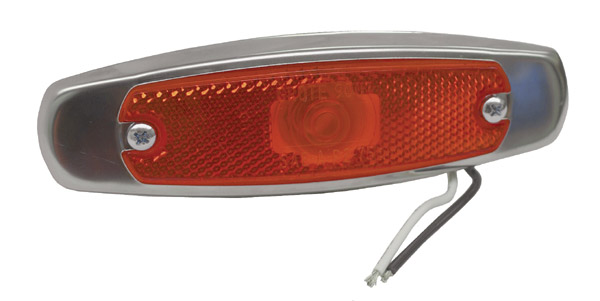

Low-Profile Clearance Marker Lights

The Low-Profile Clearance Marker Light features a built-in reflector as well as a twist-in bulb socket for easy bulb replacement. This light will require a 1¼" socket hole for mounting.
Grote Loading Ajax Spinner

45662Built-in Reflector, w/ Bezel

45662Built-in Reflector, w/ Bezel

  • 45662 thumbnail

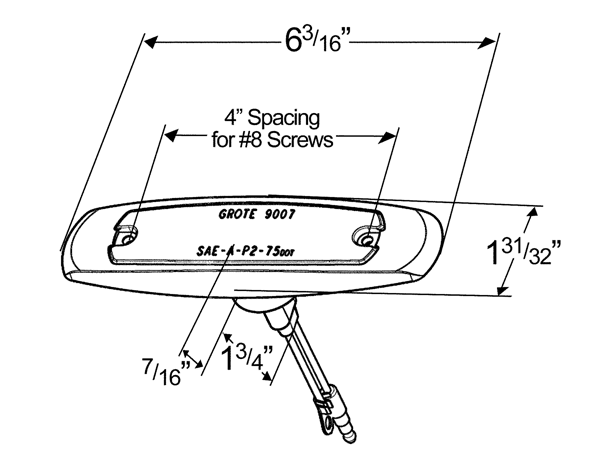

  • 45662 - drawing thumbnail
  • 45662 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Polypropolene housing, Stainless Steel Bezel
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Amperage: .27A
  • Mounting Type: Screw
  • Connection Type: Blunt Cut
  • Regulations: FMVSS108
  • Functions: A, P2
  • Bulb: #194, 2 CP
  • VMRS: 034-004-021
  • Product Type: Clearance Marker
  • Shape: Rectangular
  • Warranty: 1 Year
Features & benefits
  • Field-replaceable lens
  • Requires 1 1/4" socket hole for mounting
  • Twist-in bulb socket for easy bulb replacement
Find a Local Distributor

Replacements, Tools & Accessories

Lens 90072
90072
 Pigtail 68380
68380
