Uninsulated Quick Disconnects

Grote Loading Ajax Spinner

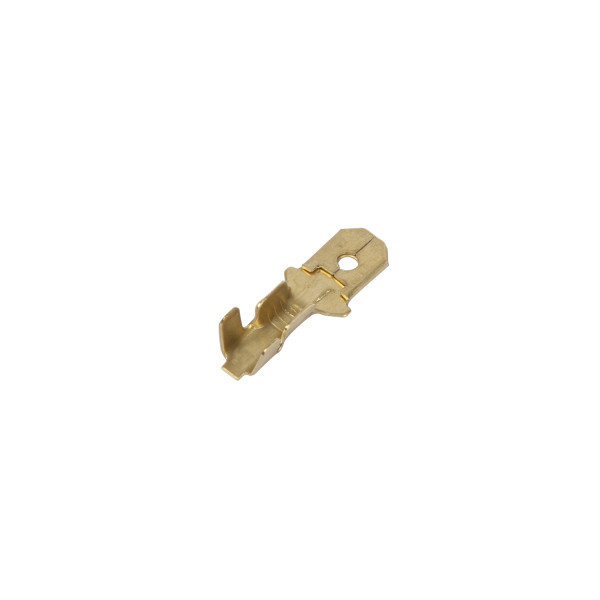

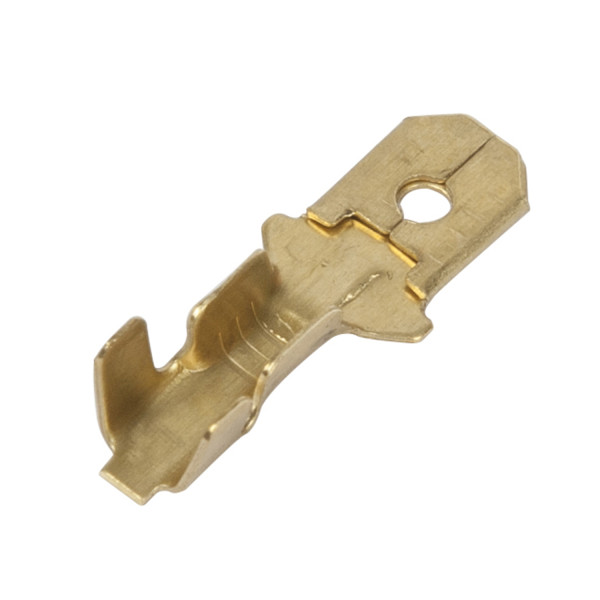

83-289820 - 14 Gauge, Male

83-289820 - 14 Gauge, Male

  • thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Gauge: 20-14 GA
  • Connection Type: Male Uninsulated Disconnect
  • Standards: UL, CSA
  • Pack Quantity: 50
  • Stud or Tab Size: .250"
  • Product Type: Quick Disconnect
  • Style: Disconnect, Uninsulated, Quick Disconnect
  • Voltage Rating: 300 V
  • Warranty: 1 Year
Features & benefits
  • High-quality tin plating which grants a corrosion-resistant fitting
  • Should only be used in instances where insulation is not needed
  • Continuous operating temperature 75°C (167°F)
