Crimp Solder & Seal Butt Connectors

Grote Loading Ajax Spinner

88-292922 - 18 Gauge

88-292922 - 18 Gauge

  • Crimp Solder & Seal Butt Connectors, 20 - 18 Gauge, 1000pk thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polyolefin
  • Color: Red
  • Gauge: 22-18 GA
  • Connection Type: Butt
  • Operating Temperature: -55°C (-67°F) to 110°C (230°F)
  • Standards: cUL
  • Functions: Crimp, Solder & Seal
  • Pack Quantity: 1000
  • Strength: 2200 PSI
  • Shrink Ratio: 3:1
  • Product Type: Butt Connector
  • ROHS: Yes
  • UL Listed: Y
  • Voltage Rating: 600 V
  • Warranty: 1 Year
Features & benefits
  • Protects splices from water, corrosion, salt and moisture, provides strain relief
  • Protects against added vibration in rugged environments
  • Completely insulates and protects electrical connections
  • Seamless butt connectors & brazed-seam rings & spades prevent unwanted opening of the connector barrel.
  • Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job
  • UL listed
  • Lead-free solder has greater surface tension
  • Solder stays in place which provides greater tensile strength than other solder sleeves
  • Solder sleeves are pre-fluxed to clean metals & provide a quality solder termination
  • New solder sleeves are Tin & Bismuth alloy
  • 45° barrel allows installer to see wire is fully inserted and wire is crimped to terminal
  • RoHS compliant; better for the environment
Find a Local Distributor

Additional information


Related videos

Customer reviews

  • It doesn't look as though anyone has left a review for this product yet, be the first?
Leave a review keyboard_arrow_right

I consent to my data being processed and published by Grote Industries

I would like to be added to the Grote Industries email marketing list.

By ticking this checkbox, you are agreeing that we can process and securely store your data. Your review, rating, your first name and the initial of your last name will be published on the website. Any of your other personal information such as your email address will only be used for administrative purposes in accordance with our privacy policy.

This is a response from the server

Any HTML tags (such as links) will be automatically removed, this helps us to reduce spam. Reviews are moderated by an administrator before they will appear on the website.
rolling logo ajax spinner

Please rate the selected product out of 5.

Similar products you may be interested in
Heat Shrinkable Butt Connectors - Polyolefin, 22 - 18 Gauge, 15pk

Heat Shrinkable Butt Connectors - Polyolefin
Double Female Bullet Receptacle, 26 - 24 Gauge, .157" Bullet Size, 15pk

Double Female Bullet Receptacles
Vinyl Ring Terminals, 22 - 16 Gauge, #4 - 6 Stud Size, 100pk

Vinyl Ring Terminals

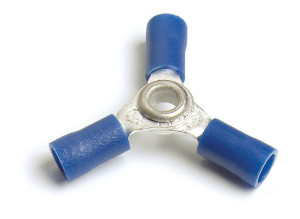

Vinyl 3-Way "Y" Connectors, 16 - 14 Gauge, 5pk
