White Light

Trilliant 26 LED Work Lamp

64g01-5

Pendant Mount, Far Flood, Retail Pack

Retail Packaging
Trilliant® 26 LED Work Lamp

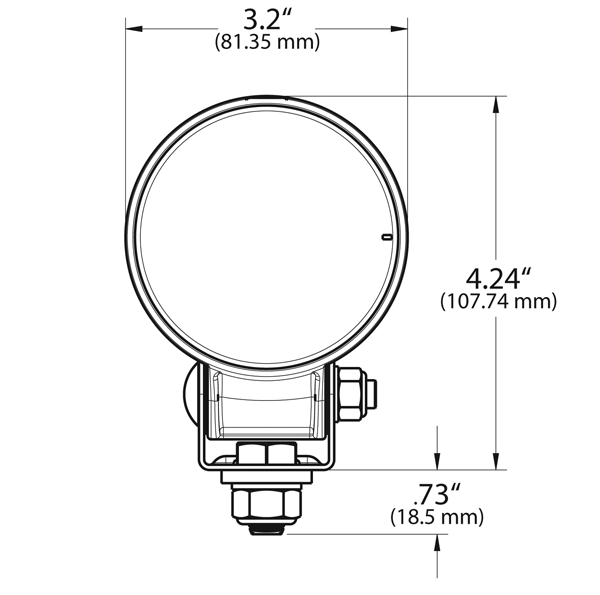

Trilliant® 26 LED Work Lamp drawing
Trilliant® 26 LED Work Lamp Trilliant® 26 LED Work Lamp drawing
load

FEATURES & BENEFITS

  • Efficient light engine projects 1790 effective Lumens using only 18 Watts of power across 10-48 Volts.
  • Rugged mechanical design ensures consistent performance and long life in the harshest environments.
  • Small size combined with tough construction allows mounting in places where larger or less rugged lamps cannot fit or survive.
  • Advanced circuit design provides electronically quiet operation; protects against EMI without interfering with other electronic devices.
  • Clean, white light designed to represent true colors, just like day light.

TECHNICAL SPECIFICATIONS

  • Material: Die Cast Aluminum, Black Powder Coated Finish / UV resistant, Hard Coated Polycarbonate Lens
  • Finish: Black Powder Coated
  • Voltage Amp: Input Voltage: 10V-48V Power Draw: 17.5W
  • Impact: SAE J575, ISO 60068-2-6:1996
  • Thermal Stress: SAE J1455
  • Ingress Protection: IP69K
  • Corrosion: SAE J2139
  • Storage Temperature Test: ISO16750-4:2003
  • Light Performance: IESNA LM-79
