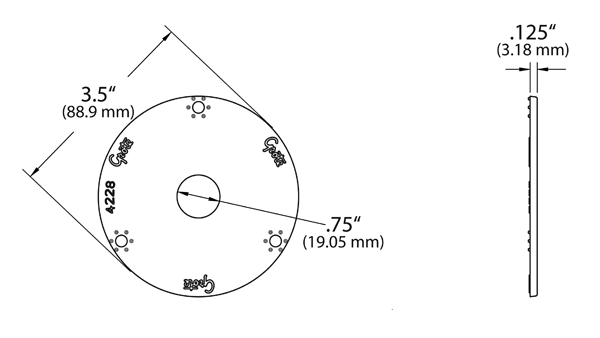

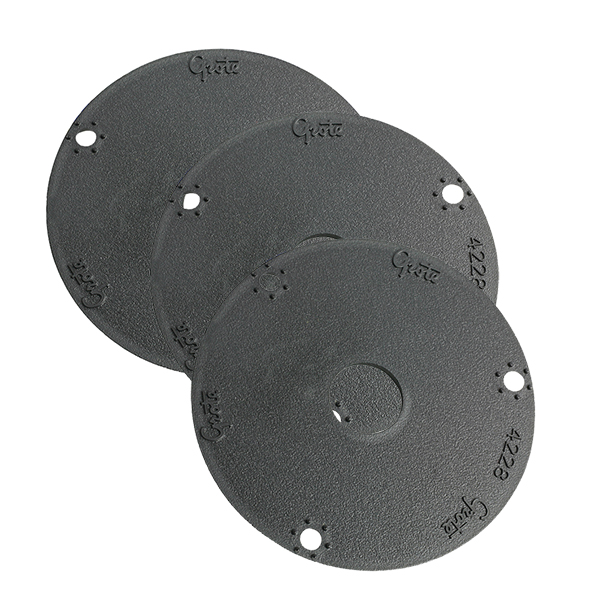

3.5" Flange Adaptor
FEATURES & BENEFITS
- Bulk Pack
- Torque to a maximum of 25 in-lbs
- Mounts with three #10 pan or round head screws
- Hole pattern is identical to existing 2” and 2.5” flanges
- Replaces any incandescent or LED 2.5” round clearance/marker and flange
- Material: Polycarbonate
- Color: Black
- Pack Quantity: 10
MicroNova® Dot adapter brackets provide an easy LED replacement for an incandescent lamp installation. These lamps can now be installed in existing bodywork anywhere a 2” or a 2 .5 “ clearance/marker lamp fits today with no change to the vehicle mounting surface. The MicroNova® Dot lamp must be equipped with a standard MicroNova® Dot grommet to fit in adapter brackets.
Contains “torque resistance” features around the mounting holes that minimize the ability to damage the adapter plate by over torquing.
Adapter brackets are supplied in packages of 10 units and do not include the MicroNova® Dot lamps.
